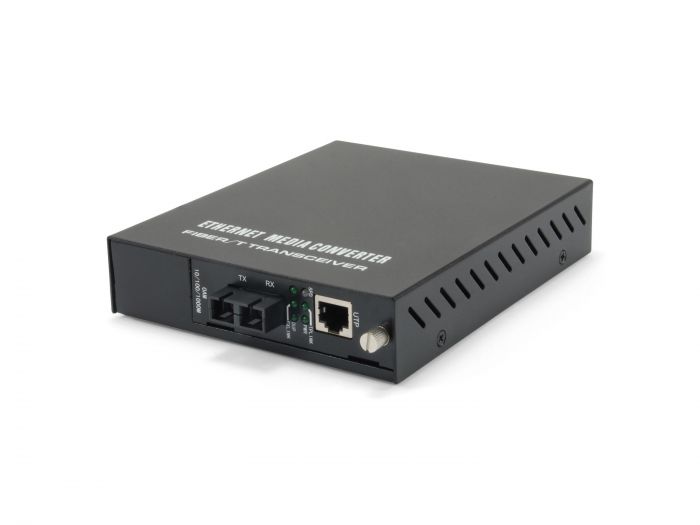

GVM-1220 RJ45 to SC Managed Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
Model Number.
GVM-1220
SKU
53107203
GVM-1220 series is remote Managed Gigabit Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100/1000Base-T and 1000Base-X, It supports both half-duplex and full-duplex operations and a variety of fiber options. It is double fiber, single mode, 20km media converter Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
● 10/100/1000Mbps auto-sensed, facilitating network upgrade ● Support LFP function ● Built-in efficient switching core to implement flow control and reduce broadcast packets ● Full-duplex and half-duplex auto-sensed ● Support SC/ST/FC connector ● Support Jumbo frame up to 9k bytes ● Support Q-in-Q function, Optical port and Ethernet port can be set separately as dual Tag ports, and can be set as ISP Tag and ISP Tag TPID ● Support configure the operation mode of each port on local and remote devices, including port speed, full/half-duplex, and flow control, etc, and can display the real-time status of each port ● Support bandwidth-limiting function: with the step of 64kps, the bandwidth can be set between 0Mbps and 1000Mbps ● Support 4 kinds of 802.3ah OAM functions: Discover of OAM, MIB variable response, OAM Loopback, Dying Gasp alarm ● Offer MIB library files, support OpenView?Snmpc, and other softwares |
| Miscellaneous. | |
| Fiber Optical Mode. | Single-Mode |
| Media Interface. | RJ45 to SMF SC |
| PoE Supported. | No |
| Manageable. | Yes |
| Grade. | Commercial |
| Physical Specifications. | |
| Dimensions (W x D x H). | 127 x 156 x 32 mm |
| Product weight (kg). | 0,72 |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Indicators. |
● PWR (power supply) ● FX LINK/ACT (optical link action) ● FDX (full duplex) ● TX LINK/ACT (TP cable link/action) ● TX SPD (TP cable rate) ● LFP(LFP function enable/disable) |
| MTBF. | 30000hours |
| Power supply included. | Yes |
| Standard. |
● IEEE802.3 10Base-T Ethernet ● IEEE802.3u 100Base-TX Fast Ethernet ● IEEE802.3ab 1000Base-T Giga Ethernet ● IEEE802.3z 1000Base-X Giga Ethernet ● IEEE802.3x Flow Control ● IEEE802.3ah OAM |
| Transmission Method. | store and forward or cut-through by software configure |
| Wavelength (nm). | 1310 |
| Others. | |
| Approval and Compliance. | CE, RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | -10°C ~ 55°C |
| Package Contents. |
● GVM-1220 ● Power Cord ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color. | Black |
| EAN. | 4015867195406 |
| Model Number. | GVM-1220 |
