GVM-2000 Smart Gigabit RJ45-SFP Media Converter, Compatible with 19-inch rack-mountable chassis
Model Number.
GVM-2000
SKU
53107803101
The LevelOne GVM-2000 is a Smart Gigabit Media Converter designed to efficiently bridge Ethernet signals between 10/100/1000Base-T and 100/1000Base-X SFP transceiver interfaces. It supports both half- and full-duplex operation and provides versatile fiber connectivity options for flexible deployment in various network environments.
Equipped with an intuitive web-based management interface, the GVM-2000 enables simplified configuration, monitoring, and maintenance—either locally or via SNMP. Users can easily manage key functions such as bandwidth control, duplex mode, port speed, and VLAN configuration. The converter is also compatible with the 19-inch rack-mountable 14-slot Media Converter Chassis (CVH-2000), delivering reliable performance, centralized management, and streamlined network operation.
| Features 1. | |
|---|---|
| Features. |
System Management ● Web browser, SNMP ● Display system information.IP address, subnet mask and gateway item can be configured ● Reset user name and password ● Recover the default configuration ● Reboot switch ● Firmware upgrade by HTTP protocol through Ethernet network Port Management ● Auto-negotiation ● Port Enable/Disable ● Flow Control ● Bandwidth control per port ● Port Mirror VLAN ● IEEE 802.1Q tag-based VLAN ● Up 4096 VLAN IDs QoS ● Traffic classification based,strict priority and WRR ● 8-level priority for switching ● Traffic classification ● Cos/802.1p ● DSCP ACL ● ACL based port MAC ● Dynamic Address ● Static Address Ring protocol ● Supports ERPS,and complies with ITU-TG.8032 ● Recovery time <500ms Loop Detection ● Enable/Disable IGMP SNOOPING ● Enable/Disable Configuration Management ● Configuration upload/download through HTTP |
| Miscellaneous. | |
| Fiber Optical Mode. | Both |
| Media Interface. | RJ45 to SFP |
| PoE Supported. | No |
| Manageable. | Yes |
| Grade. | Commercial |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Indicators. |

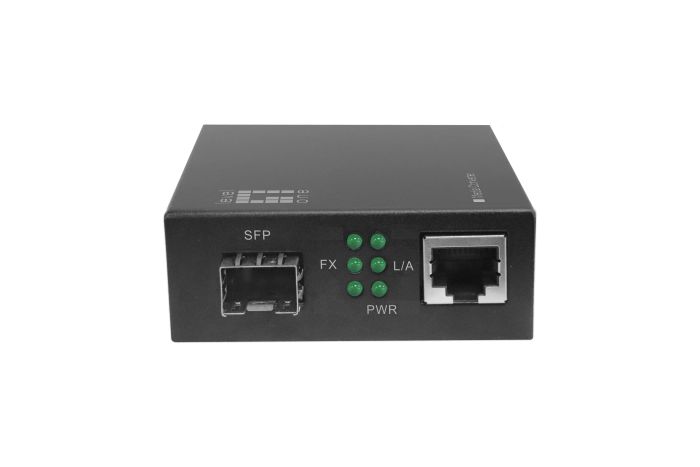

● PWR: Green,power supply ● L/A (Right): Green, Link/Active for UTP ● FX (Left): Green,Link/Active for Fiber |
| Jumbo frame (KB). | 9 |
| Mount. | Desk mount |
| MTBF. | >400K(SR332) |
| Power consumption. | 5 W |
| Power supply. | 5VDC/1A (Power Adapter with Power Plug) |
| Power supply included. | Yes |
| Standards. | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet, IEEE 802.3az Energy-Efficient Ethernet, IEEE802.3z 1000Base-SX/LX |
| Others. | |
| Approval and Compliance. |
● CE ● UKCA ● RoHS |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 45°C |
| Storage humidity. | 5% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Package Contents. |
● GVM-2000 ● Power Adapter with Power Plug ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color. | Black |
| Model Number. | GVM-2000 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 94 x 71 x 26 mm |
