USB Print Server
Modellnummer
FPS-1032
SKU
501032
USB Printer Server für gemeinsame Druckernutzung im Netzwerk
USB-2.0-Schnittstelle
Einfaches Einrichten über benutzerfreundliche Oberfläche
Unterstützt verschiedene Netzwerk-Druckprotokolle
Unterstützt verschiedene Betriebssysteme
Product Overview

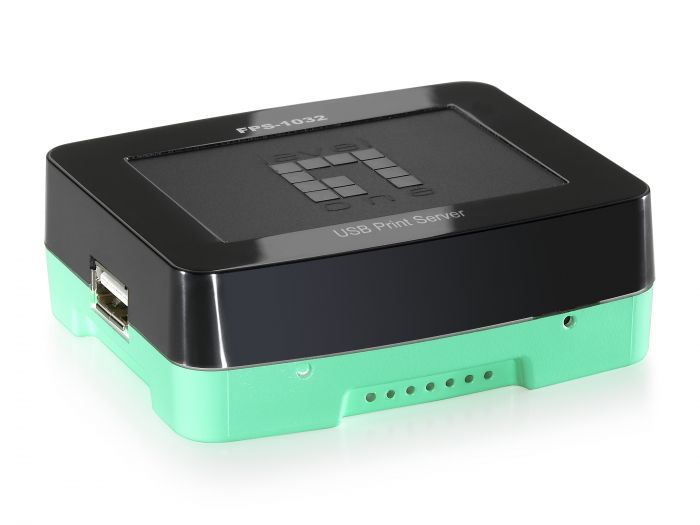

The LevelOne FPS-1032 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. This print server is equipped with a 10/100Mbps autosensing Ethernet port and a USB 2.0 port that connected to USB printer.
Multi OS and Network Printing Protocol Support
The FPS-1032 1-port USB print server supports Windows ME/NT/2000/XP/2003/Vista and Win7 operating systems as well as Mac OS 8.1 and higher, UNIX/Linux and Netware (Bindery/NDS).
Network Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB over TCP/IP for flexible use with different network clients connected to the same office network. The FPS-1032 also includes Internet Printing Protocol (IPP) support and Windows Print Monitor Technology to monitor printing jobs received.
Easy Installation Wizard
The LevelOne FPS-1032 is easily configurable using a Web Browser or Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the windows set-up program or the Web based user interface.
| Port Configuration | |
|---|---|
| Fast-Ethernet RJ45 | 1 |
| Logistics Data. | |
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Features 1. | |
| Features. |
Network Print Protocol Support : LPR,RAW TCP,IPP,SMB AppleTalk Netware Bindery/NDS Print Monitor printing |
| Miscellaneous. | |
| Printer Interface. | USB |
| System Specifications. | |
| Flash-Speichergröße | 2 Mbytes |
| Indikator |
LAN LED USB LED |
| Stromversorgung | Power adapter |
| Power supply included. | Ja |
| Arbeitsspeichergröße | 16 Mbytes DDR2 |
| Standards | IEEE 802.3, 802.3u Ethernet Standards |
| Others. | |
| Zulassungen und Konformität | CE, FCC |
| Operating humidity. | 0% RH ~ 70% RH |
| Operating temperature. | 0°C ~ 45°C |
| Unterstützte Betriebssysteme |
Windows ME/NT/2000/XP/2003/Vista/Win7 Mac OS 8.1 and higher UNIX/Linux and Netware (Bindery/NDS). |
| Storage humidity. | 0% RH ~ 80% RH |
| Storage temperature. | -5°C ~ 65°C |
| Lieferumfang |
FPS-1032 Netzadapter Quick Installation Guide Ressource CD (Bedienungsanleitung, Hilfsprogramm, QIG) |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867142233 |
| Modellnummer | FPS-1032 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 64.8 x 73.2 x 24.9 mm |
| Produktgewicht (kg) | 0,52 |
