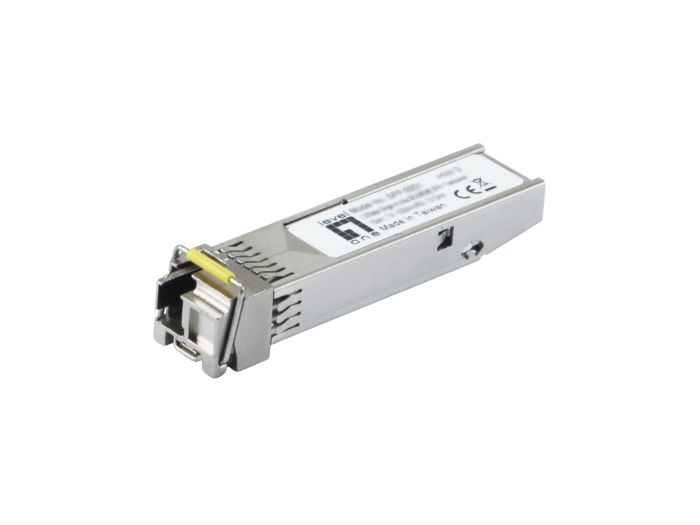

SFP-9331 1.25Gbps Single-mode BIDI(WDM) SFP Transceiver, 20km, TX 1550nm / RX 1310nm
Modellnummer
SFP-9331
SKU
55109307501
The LevelOne SFP-9331 is a high-performance, cost-effective 1.25Gbps BiDi(WDM) SFP transceiver designed for single-mode fiber for the link up to 20km applications. Utilizing 1550nm for transmission and 1310nm for reception, When coupled with the SFP-9321 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) get bi-direction data communication on a single fiber core, maximizing fiber utilization and reducing infrastructure costs.
| Logistics Data. | |
|---|---|
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Features 1. | |
| Features. |
• DDM (Digital Diagnostics Monitoring) • Hot-swappable |
| Miscellaneous. | |
| Fiber Optical Mode. | Single-Mode |
| Transceiver Type. | BIDI SFP |
| Grade. | Commercial |
| Performance 2. | |
| Empfangsempfindlichkeit (dBm) | -23 dBm |
| System Specifications. | |
| Optische Sendeleistung (dBm) | -9 to -3 dBm |
| Energieverbrauch | 1000 mW |
| Wellenlänge (nm) | TX 1550nm / RX 1310nm (SFP-9331) , TX 1310nm / 1550nm (SFP-9321) |
| Others. | |
| Zulassungen und Konformität |
• CE • CB • FDA 21 CFR 1040.10 and 1040.11 • FCC 47 CFR PART 15 SUBPART B • TUV • UL • RoHS |
| Operating humidity. | 5% RH ~ 85% RH |
| Operating temperature. | 0°C ~ 70°C |
| Inhalt des Pakets | Foot Stand |
| Storage humidity. | 5% RH ~ 85% RH |
| Storage temperature. | -40°C ~ 85°C |
| Lieferumfang |
SFP-9331 Quick Installation Guide Declaration of Conformity |
| General. | |
| Farbe | Silver |
| Modellnummer | SFP-9331 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 56.4 x 13.4 x 10.97 mm |
| Produktgewicht (kg) | 0.018 |
