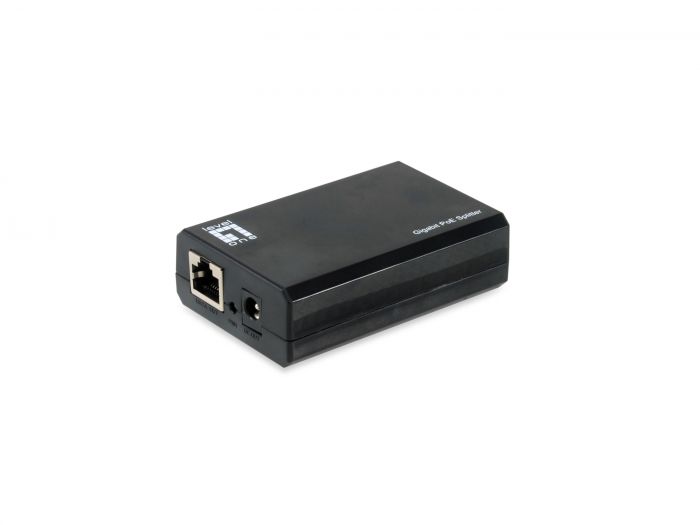

POS-5000 Gigabit IEEE802.3bt PoE Splitter

Modellnummer
POS-5000
SKU
55206903101
  • 10/100/1000Mbps wire speed transmission and reception
  • Intergrates Non-PoE devices with Power Over Ethernet support
  • Safeguards network device with short circuit protection
  • Reduce installation and network equipment costs
  • Adjustable DIP switch for  12V, or 24V output
  • Compact splitter supports Gigabit speeds
  • Supplies power up to 60 watts
  • The LevelOne POS-5000 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (12V or 24V). Save installation and equipment cost when installing WiFi access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

    More Information
    Logistics Data.
    Code des Harmonisierten Systems (HS) 851762
    Zolltariflicher Warencode (TARIC) 8517620000
    Features 1.
    Features. 10/100/1000Mbps wire speed transmission and reception
    Adjustable DIP switch for 12V, or 24V output
    PoE Funktionen 10/100/1000Mbps wire speed transmission and reception
    Adjustable DIP switch for 12V, or 24V output
    Maximum power output up to 60W.
    Physical Specifications.
    Dimensions (W x D x H). 80x53x24
    Produktgewicht (kg) 0.08
    System Specifications.
    Indikator Power/Link Act
    Port Configuration RJ-45 10/100/1000 Mbps ,Power connector
    Energieverbrauch 2W<
    Standards IEEE 802.3af
    IEEE 802.3at
    IEEE 802.3bt
    Others.
    Zulassungen und Konformität CE/FCC
    Operating humidity. 5% RH ~ 90% RH
    Operating temperature. 0°C ~ 40°C
    Storage humidity. 0% RH ~ 95% RH
    Lieferumfang Powe cable /RJ-45 cable
    General.
    Farbe Schwarz
    EAN 4015867231111
    Modellnummer POS-5000
