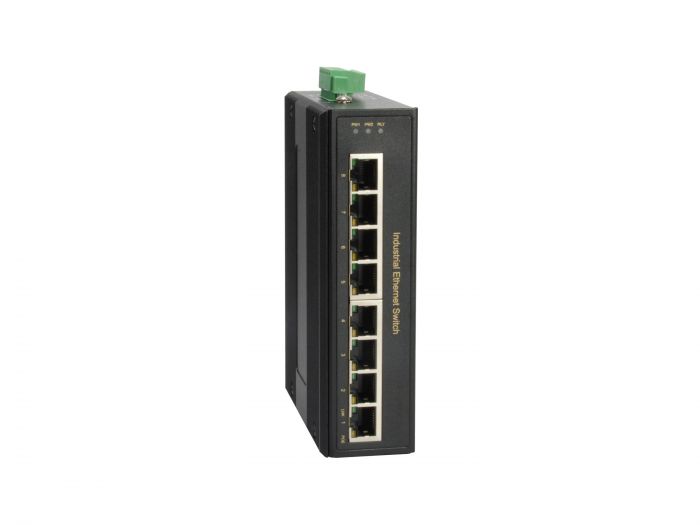

IGP-0802 8-Port Gigabit PoE Industrial Switch, 8 PoE-Ausgänge, 802.3at/af PoE, 200W, -40°C bis 75°C
Modellnummer
IGP-0802
SKU
55051607
- Gesamt-PoE-Budget: 200 W, bis zu 30 W pro Port
- 1000Mb/s, Voll-Duplex, 10/100 Mb/s, Voll/Halb-Duplex, Auto-Negotiation, Auto-MDI/MDIX
- Betriebstemperaturbereich von -40°C bis 75 °C
- Bietet DIN-Schienen-, Tisch- oder Wandmontage
- IP30-Metallgehäuse
- Redundante Netzeingänge mit Anschlussblock
The LevelOne IGP-0802 is 10/100/1000M industrial 8 port high power POE switch is equipped with 8 port 30Watts PSE. It is designed for 48-56VDC input sources, especially for IP surveillance, traffic monitoring and for a broad range of applications. It can be used as a stand-alone device for buses, trucks, and other vehicles for Surveillance purposes. It is being rigorously tested for your Security, Transportation and Telco application.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Features 1. | |
| Features. |
1000Base-T, 100 Base-Tx, 10Base-T Ethernet 8 Port PoE Output |
| Energy Saving. | IEEE 802.3az (Energy Efficient Ethernet) |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 8,00 Total |
| PoE Power Budget. | 200,00 Total |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Power supply included. | Nein |
| Eingangsspannung |
Redundant Dual DC 48V-56V Power Input POE input 48-56VDC 5.76W@48 VDC full load, Without POE |
| Energieverbrauch | <10W without PoE |
| MTBF | 510,304 hrs ( MIL-HDBK-217F) at 25ﾡC |
| Paket-Weiterleitungsrate | 1488000 bps |
| Port Configuration | 8* 10/100/1000 Mbps RJ-45 |
| Standards |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure, IEEE802.3af for POE IEEE802.3at for POE+ |
| Befestigung | DIN rail mount |
| Flash-Speichergröße | 1M |
| MAC-Adresstabelle | 8K |
| Jumbo-Frames (KB) | 9 |
| Indikator |
Per Unit: Power Per Port: Ethernet Link, PoE Status |
| Backplane (Gbit/s) | 16 |
| Others. | |
| Zulassungen und Konformität |
FCC,CE,VCCI EN60950-1 EN60068(Vibration,Shock,Free Fall) |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Lieferumfang |
IGP-0802, Power Terminal Block, User Manual, Wall Mount Kit, Din-rail Mount Kit |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867196656 |
| Modellnummer | IGP-0802 |
| Physical Specifications. | |
| Produktgewicht (kg) | 0,525 |
| Dimensions (W x D x H). | 105 x 36.2 x 142 mm |
