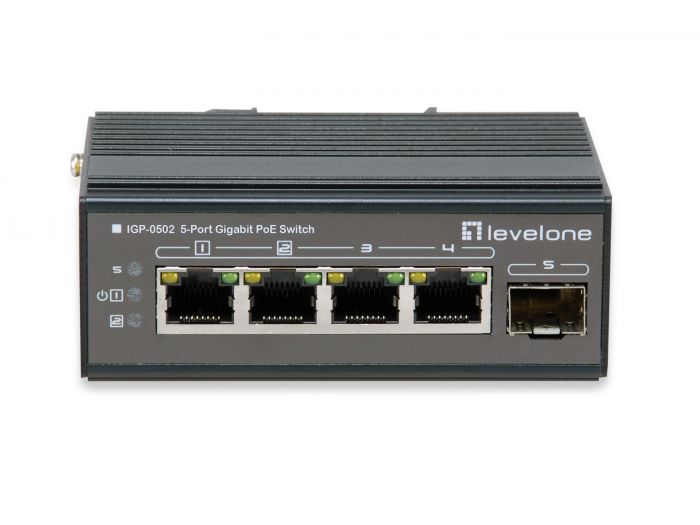

IGP-0502, 5-PORT GIGABIT INDUSTRIAL SWITCH, 802.3at/af PoE, DIN-Rail, -40°C to 75°C, 120W
LevelOne IGP-0502 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 1 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/af PoE standard at maximum 30W power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3 af/at standard PD devices.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Input |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867228173 |
| Modellnummer | IGP-0502 |
| Features 1. | |
| Features. | Ports 1~4 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3at/af) |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 5,00 Total |
| PoE Power Budget. | 120,00 Total |
| Performance 2. | |
| Schaltleistung | 1M |
| Physical Specifications. | |
| Produktgewicht (kg) | 0.35 |
| Dimensions (W x D x H). | 65 x 36 x 101 mm |
| System Specifications. | |
| Stromversorgung | VDC 48~57V, (Power supply unit is to be ordered separately) |
| Data Rate. | 1Gbps |
| Power supply included. | Nein |
| Eingangsspannung | Redundant Dual DC 48V-57V |
| Energieverbrauch | <5W |
| Port Configuration | 4 port 10/100/1000 Mbps RJ45 and 1 port Gigabit SFP |
| IP grade | 30 |
| Standards |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure, IEEE802.3af for POE IEEE802.3at for POE |
| Ausgangsspannung | IEEE 802.3 AF/AT, Total PoE Budget 120W, Each Single port 30 W |
| Pinbelegung und Polarität | 1/2 (+), 3/6 (-) |
| Befestigung | DIN rail mount |
| Arbeitsspeichergröße | 1M |
| MAC-Adresstabelle | 8K |
| Jumbo-Frames (KB) | 9 |
| Indikator |
Power, Link/Act |
| Paketpuffer | 1488000 bps |
| Backplane (Gbit/s) | 10 |
| Others. | |
| Zulassungen und Konformität |
CE/FCC IEC61000-4-2(ESD: 6KV:contact / 8KV:air) IEC61000-4-5(Surge: 6KV) |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Lieferumfang |
IGP-0502 Quick Installation Guide |
