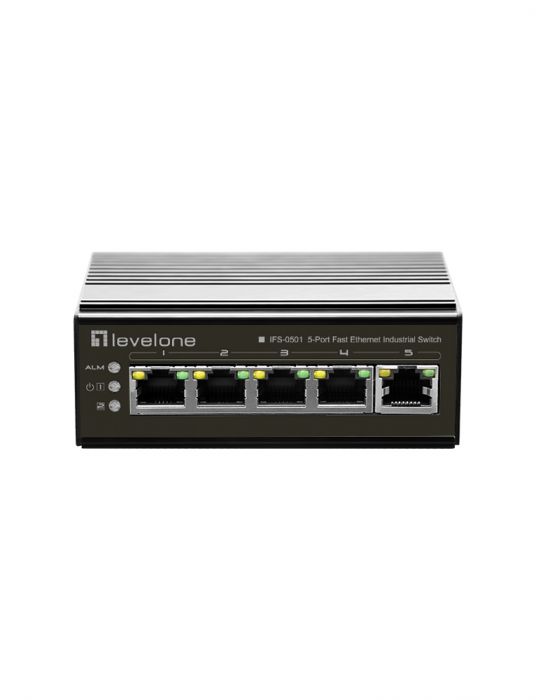

IFS-0501, 5-Port Fast Ethernet Industrial Switch, DIN-Rail,-40°C to 75°C
Modellnummer
IFS-0501
SKU
55050107201
The LevelOne IFS-0501 Industrial Fast Ethernet Switch provides 5 ports at 10/100M TX to enable high speed network in mission-critical environments. With an industrial standard DIN-rail mount, this switch can be installed in a cabinet, and clearly visible status LEDs provide simple monitoring of port link activity. The switch is housed in a solid metal case rated at IP30, keeping it safe from dust, vibration, heat and humidity, while an operational temperature range of -40°C to +75°C makes it suitable for deployment in almost any environment.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867224229 |
| Modellnummer | IFS-0501 |
| Features 1. | |
| Features. |
Supports relay alarm for power off, network broken; Supports 6KV surge protection, 6KV contact / 8KV air ESD protection; |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | No |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 5,00 Total |
| Physical Specifications. | |
| Produktgewicht (kg) | 0.35 |
| Dimensions (W x D x H). | 101×65×36 |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Power supply included. | Nein |
| Eingangsspannung | VDC 12-60 |
| Energieverbrauch | <5W |
| MTBF | 300,000 hours |
| Paket-Weiterleitungsrate | Thoughput 0.74 Mbps |
| Standards |
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) |
| Befestigung | DIN rail mount |
| MAC-Adresstabelle | 8K |
| Jumbo-Frames (KB) | 1092 |
| Indikator | Power /Lin Act |
| Paketpuffer | 1M |
| Backplane (Gbit/s) | 1Gbps |
| Others. | |
| Zulassungen und Konformität | CE/FCC |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 80°C |
| Lieferumfang |
Power Terminal Block, Quick Installation Guide, Din-rail Mount Kit |
