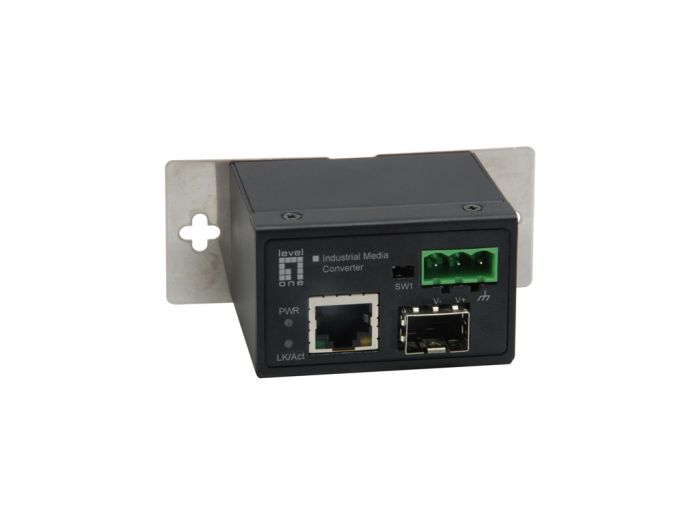

IEC-4000 Fast-Ethernet RJ45 zu SFP Industrieller Mediakonverter, -40°C bis 75°C
Modellnummer
IEC-4000
SKU
555533
Überträgt Daten von 10/100Base-TX-Kupfer- zu Glasfaserschnittstellen
Integrierte LFP- (Link Fault Pass-through) (LLCF/LLR) Technologie
Betriebstemperaturbereich von -40°C bis 75 °C
Bietet DIN-Schienen- oder Panel-Montage
Schutz vor Überspannungen und statischen Ladungen
LevelOne IEC-4000 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867188132 |
| Modellnummer | IEC-4000 |
| Features 1. | |
| Features. |
DIP Switch: Link Fault Pass Through (LFP) Enable / Disable Switch Converter / Pure Converter mode |
| Miscellaneous. | |
| Fiber Optical Mode. | Both |
| Media Interface. | RJ45 to SFP |
| PoE Supported. | No |
| Manageable. | No |
| Grade. | Industrial |
| Physical Specifications. | |
| Dimensions (W x D x H). | 59 x 49 x 36 mm |
| Produktgewicht (kg) | 0,09 |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Indikator | Power, Speed (TP), Link / Act (TP & Fibre) |
| Befestigung | DIN rail mount |
| MTBF | 510,340(hr) |
| Port Configuration | 1* 10/100 Mbps RJ-45, 1* 1000Mbps SFP |
| Eingangsspannung |
Power Consumption: 1.44W Power Input: 12 to 60VDC or 18 to 36VAC (Terminal Block) |
| Power supply included. | Nein |
| Standards |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3u 100-BASE-FX, Fast Ethernet IEEE 802.3x Flow Control and Back Pressure |
| Übertragungsmethode | Store and forward (Default) pass through |
| Wellenlänge (nm) | Depend on SFP fiber optical transceiver |
| Others. | |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Lieferumfang |
IEC-4000 Quick Installation Guide |
