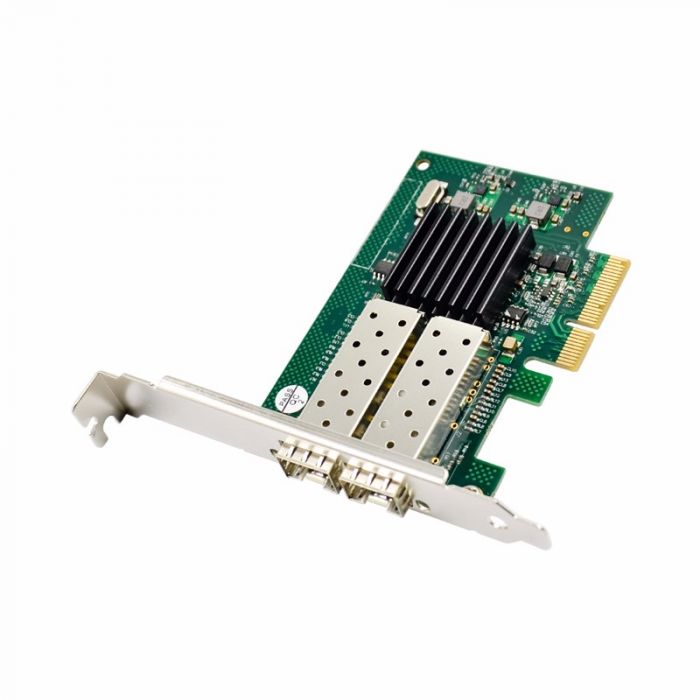

Gigabit-Glasfaser-PCIe-Netzwerkkarte, PCIe x4, 2 x SFP
Modellnummer
GNC-0122
SKU
55012207201
The LevelOne GNC-0122 Gigabit network card facilitates high-speed connectivity within a fiber-optic network. Wake-on-LAN functionality allows remote start-up and shutdown, and the device offers flexibility by supporting iSCSI for remote boot. GNC-0122 also features an Intel PROSet Utility for Windows Device Manager, offers load balancing across multiple CPUs and is compatible with most Network Operating Systems.
| Port Configuration | |
|---|---|
| Gigabit SFP | 2 |
| Logistics Data. | |
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Silver |
| EAN | 4015867224212 |
| Modellnummer | GNC-0122 |
| Features 1. | |
| Features. | PCI Express v2.0, 2.5 GT/s |
| Miscellaneous. | |
| Host Interface. | PCIe x4 |
| Network Card Type. | Fiber Optics |
| Physical Specifications. | |
| Dimensions (W x D x H). | 69 x 112 x 16 mm |
| Produktgewicht (kg) | 0.0832 |
| Others. | |
| Zulassungen und Konformität | CE, RoHS |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 55°C |
| Unterstützte Betriebssysteme |
• Windows 7 / Windows 8 / Windows 8.1 / Windows 10 • Windows Server* 2008 / Windows Server* 2012 / Windows Server* 2016 • FreeBSD, Linux, VMWare ESXi |
| Storage humidity. | 0% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Lieferumfang |
GNC-0122, Low Profile Bracket, Quick Installation Guide, Resource CD (User Manual, Driver) |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Indikator | Link/Activity |
| Chipsatz | Intel 82576 |
| Standards |
• 1000Base-SX / 1000Base-X / 1000Base-LX • 1000BASE-LX: 10Km at 9µm • 1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm |
