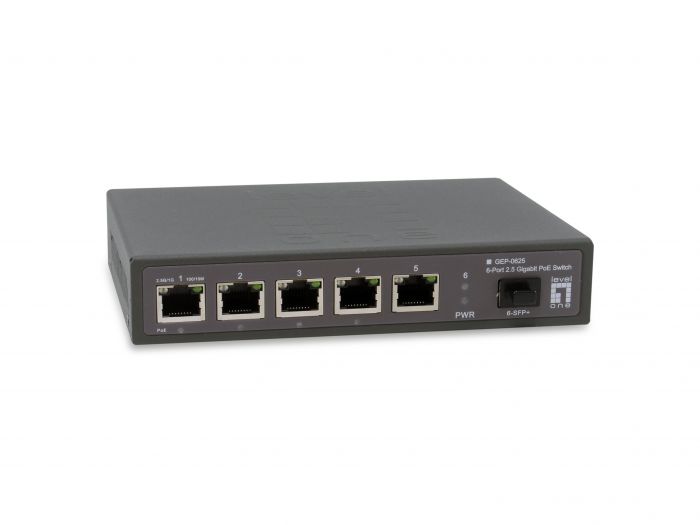

GEP-0625, 6-Port 2.5 Gigabit PoE Switch ,4-Port PoE Outputs,1 x 10G/SFP+,Power Budget 65W
The LevelOne GEP-0625 switch delivers exceptional performance with multi-gigabit PoE ports and a high-speed uplink, making it an ideal solution for businesses seeking to scale their networks with efficiency and ease. Whether for small businesses, branch offices, or home setups, this switch offers high performance and versatility for any network configuration.
Advanced PoE Capabilities:
Supporting IEEE 802.3at/af and 802.3bt (Port 1), the RJ45 ports provide speeds of up to 2500 Mbps while powering multiple devices like IP cameras, access points, and VoIP phones, eliminating the need for separate power supplies.
High-Speed Uplinks:
The 10G SFP+ port ensures ultra-fast uplinks to core switches or data centers, enabling smooth traffic flow without bottlenecks.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867238042 |
| Modellnummer | GEP-0625 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 6,00 Total |
| PoE Power Budget. | 65,00 Total |
| Physical Specifications. | |
| Produktgewicht (kg) | 0.32 |
| Dimensions (W x D x H). | 131x78x28 |
| System Specifications. | |
| Stromversorgung | VDC52V/1.25A Power cord and dapter |
| Data Rate. | 10Gbps, 2.5Gbps |
| Standards. | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet, IEEE 802.3x Full-duplex Flow Control, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), IEEE 802.3ae changeable (10GBASE-SR/LR/ER), IEEE 802.3bz 2.5 Gigabit Ethernet |
| Power supply included. | Ja |
| Eingangsspannung | VDC52V/1.25A |
| Energieverbrauch |
<2W without PoE Output Full Load 65W |
| MTBF | 300,000 hrs |
| Paket-Weiterleitungsrate | 44 Mbps |
| Port Configuration | 4* 2.5GE PoE RJ45+1* 2.5 GE RJ45+1*10GE SFP+ |
| Pinbelegung und Polarität | 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-) |
| Befestigung | Desk mount |
| MAC-Adresstabelle | 15K |
| Indikator | Power / PoE / Link Act |
| Paketpuffer | 8 M |
| Backplane (Gbit/s) | 35 |
| Others. | |
| Zulassungen und Konformität | CE/FCC |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 40°C |
| Lieferumfang |
Power cord and adpater EcDoC |
Download PDF
