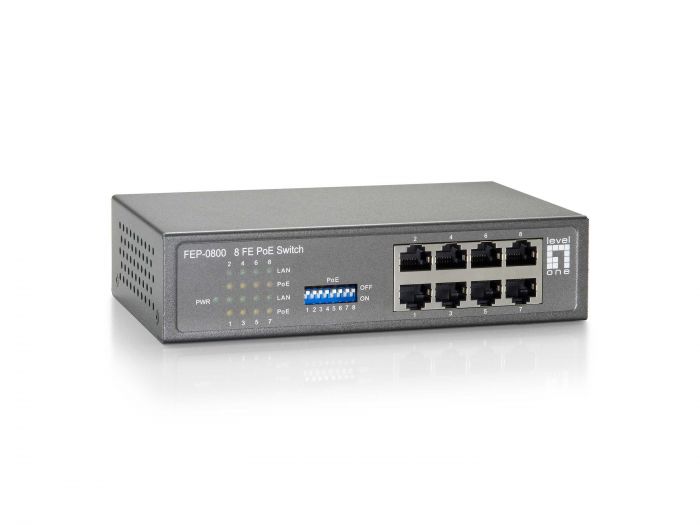

FEP-0800 8-Port-Fast Ethernet-PoE-Switch, 8 PoE-Ausgänge, 90W
Modellnummer
FEP-0800
SKU
520830
- 10/100 Mb/s, Voll/Halb-Duplex, Auto-Negotiation, Auto-MDI/MDIX
- DIP-Schalter zur Steuerung der PoE-Aktivität aller Ports
- IEEE-802.3x Flow-Control schützt vor Packet-Loss und sorgt für zuverlässige Datenübertragung
- Einfache Plug-and-Play-Installation
FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.
| Port Configuration | |
|---|---|
| 802.3af/at PoE | 8 |
| General. | |
| Farbe | Grey |
| EAN | 4015867187975 |
| Modellnummer | FEP-0800 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 8,00 Total |
| PoE Power Budget. | 90,00 Total |
| Performance 2. | |
| Schaltleistung | 1.6Gbps |
| Physical Specifications. | |
| Produktgewicht (kg) | 1,4 |
| Dimensions (W x D x H). | 165 x 99 x 41 mm |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Power supply included. | Nein |
| Standards |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control |
| Befestigung | Desk mount |
| Flash-Speichergröße | 64 |
| MAC-Adresstabelle | 1K |
| Indikator | Power, Active, 10/100M, PoE |
| Mikro-Schalter | PoE Power On/Off Switch |
| Backplane (Gbit/s) | 10/100Mbps |
| Others. | |
| Zulassungen und Konformität | FCC, CE, RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 45°C |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Lieferumfang |
FEP-0800, Power Adapter, Power Cord, User Manual |
