EOC-1100 , PoE Ethernet transmission over Coax Kit
Modellnummer
EOC-1100
SKU
55553703101

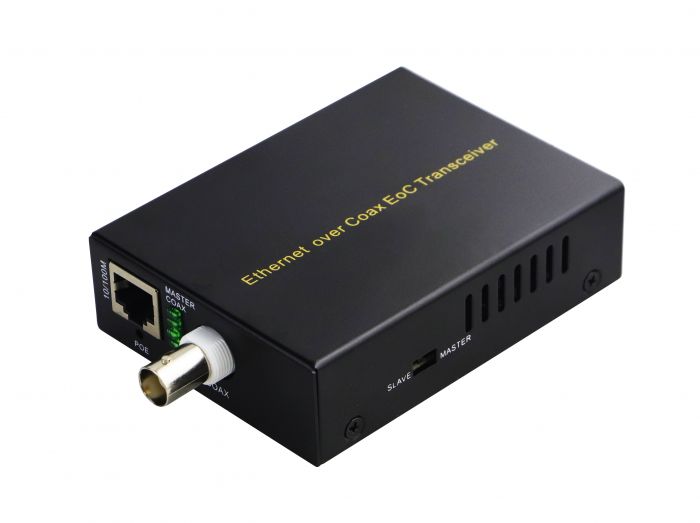

LevelOne EOC-1101 is a conversion device for Ethernet over Coax. It can be used in pair or one to multi. The equipment can transmit by BNC RG-58 Ethernet coax cable . Also have the excellent isolation and thunder prevention or anti-jamming function. In the practical project, this device is proved to be of highperformance in surge prevention. It transmits IP video or Ethernet up to 1.5km at a max rate 70Mbps over existing coax, thus cut the cost by avoid re-cabling when swapping analogue cameras for IP/Megapixel models.
EOC-1100 Kit included two EOC-1101 and 48V/60 Watt power adapter .
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867230770 |
| Modellnummer | EOC-1100 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 25x94x77mm |
| Produktgewicht (kg) | 0.45 |
| System Specifications. | |
| Indikator | Power /Link Act |
| Pinbelegung und Polarität | 1/2 (+), 3/6 (-) |
| Port Configuration | BEN/RJ-45/Power |
| Energieverbrauch |
<3Watt Without PoE |
| Standards. | IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+) |
| Others. | |
| Zulassungen und Konformität | CE/FCC |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | -20°C ~ 55°C |
| Storage humidity. | 5% RH ~ 90% RH |
| Lieferumfang |
Power cord Power adapter QIG |
