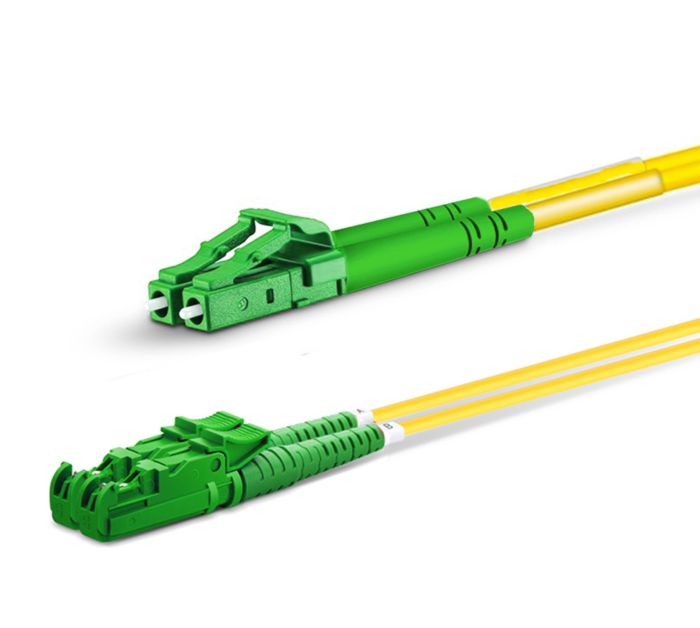

255106 Cavo in fibra E2000/APC a LC/APC, SM, 10m

Numero di modello
255106
SKU
25510607101
  • Connector: E2000/APC Male to LC/APC Male
  • Fiber type: Single mode (9/125µm)
  • Polarity: Duplex
  • Application: Telecommunications, data centers, enterprise fiber networks
  • Jacket type: LSZH (Low Smoke Zero Halogen)
  • Jacket color: Yellow
  • Length: 10m
  • The E2000/APC to LC/APC fiber cable is a single-mode optical patch cable designed for precise and reliable data transmission in professional fiber optic networks.

    It features an E2000/APC connector on one end and an LC/APC connector on the other, making it suitable for telecommunications systems, data centers, and enterprise networks that require low-reflection, high-accuracy optical connections.

    Constructed with a 9/125µm single-mode fiber core and APC angled physical contact polishing, this cable delivers low insertion loss and excellent return loss performance. The LSZH jacket enhances safety for indoor installations, while the 10-meter length supports flexible routing across racks and network equipment.

    Maggiori Informazioni
    Others.
    Approvazione e conformità RoHS, REACH
    Contenuto della confezione Fiber cable 10m x 1
    General.
    Colore Giallo
    Numero di modello 255106
    Physical Specifications.
    Lunghezza del cavo 10m
    Dimensioni (L x P x A) 9 x 50.5 x 10000m
    Peso del prodotto (kg) 0.098
    System Specifications.
    Tipo di cavo in fibra OS2
    Materiale del rivestimento del cavo LSZH
