GEU-1632 Switch Ethernet Gigabit de 16 puertos
- 16 puertos Gigabit Ethernet
- 1000Mbps full-dúplex, 10/100Mbps full/half-dúplex, auto-negociación, auto-MDI/MDIX
- Soporta auto-aprendizaje y auto-envejecimiento de 8K direcciones MAC
- Nivel de protección contra sobretensiones de 6KV en cada puerto
- Control por botón de 4 modos: Estándar/Aislamiento de puertos/Agrupación de puertos/Clonación de red
- Kit de montaje en bastidor de 19 pulgadas incluido

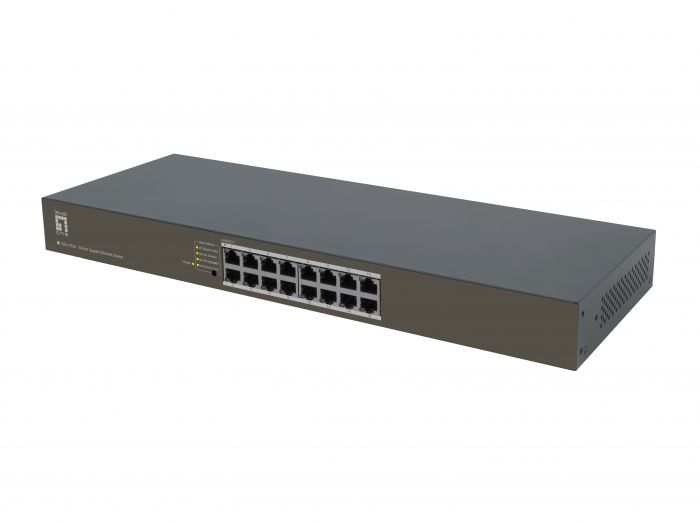

The LevelOne GEU-1632 is a 16-port Gigabit Ethernet switch designed for small business, workgroup and edge deployments that need simple, reliable high-speed connectivity. All 16 copper ports support 10/100/1000 Mbps with wire-speed forwarding, making it ideal for transferring large files, streaming HD video and supporting multiple concurrent network users without bottlenecks.
A built-in one-touch DIP button lets administrators quickly switch between four factory-optimized modes: Standard, Port Isolation, Port Aggregation and Network Clone. This hardware-based design allows you to adapt the switch to different topologies—such as isolating guest networks, aggregating bandwidth for servers, or cloning network environments—without any software, configuration menus or downtime.
Auto-negotiation and Auto-MDI/MDI-X on every port simplify installation by automatically selecting the best speed and duplex and eliminating the need for crossover cables. With support for 8K MAC address auto-learning/auto-aging and 6KV surge protection per port, the GEU-1632 is built for stable, long-term operation in busy wiring closets. The included 19-inch rackmount kit and front-panel LED indicators make it easy to deploy, monitor and maintain in standard network racks.
| Logistics Data. | |
|---|---|
| Código aduanero del producto (TARIC) | 8517620000 |
| Miscellaneous. | |
| Grado | Comercial |
| Soporta PoE | No |
| Manejable | No |
| Sin ventilador | Sí |
| System Specifications. | |
| Alimentación | 100-240 VAC, 50/60 Hz, Max. 0.3 A |
| Data Rate. | 1Gbps |
| Normas | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet |
| Fuente de alimentación incluida | Sí |
| Consumo de energía | 12 W (Max) |
| Tasa de reenvío de paquetes | 23.81 Mpps |
| Configuración de puertos | 16x 10/100/1000 Ethernet ports |
| Ruido acústico (dB) | 0 |
| Monte | Montaje en bastidor de 19, Soporte de sobremesa |
| Tabla de direcciones MAC | 8 K |
| Indicadores |
● Power Indicator ● Link/Act Indicator ● Working Mode Indicator |
| Interruptor DIP | Standard, Port Isolation, Port Aggregation, Network Clone |
| Búfer de paquetes | 4.1 Mbits |
| Placa base (Gbps) | 32 |
| Others. | |
| Aprobación y conformidad |
● CE ● RoHS |
| Humedad de funcionamiento | 5% HR ~ 95% HR |
| Temperatura de funcionamiento | 0°C ~ 40°C |
| Humedad de almacenamiento | 5% HR ~ 95% HR |
| Temperatura de almacenamiento | -40°C ~ 85°C |
| Contenido del paquete |
● GEU-1632 ● Power Cord ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color | Gris |
| EAN | 4015867241257 |
| Número de modelo | GEU-1632 |
| Physical Specifications. | |
| Peso del producto (kg) | 1.237 |
| Dimensiones (An x Pr x Al) | 440 x 160 x 44 mm |
