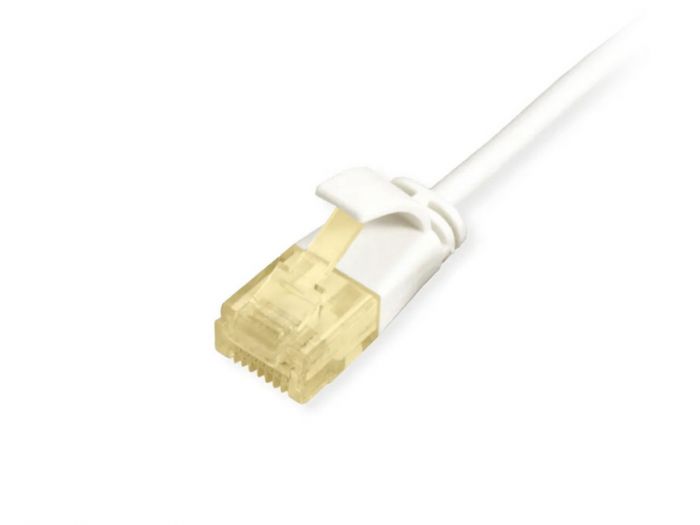

626004 Cat.6A U/UTP Slim Cable de conexión, 1.5m, Blanco

Número de modelo
626004
SKU
62600407101
  • Connector: RJ45 Male to RJ45 Male
  • Cable type: Cat.6A U/UTP slim patch cable
  • Bandwidth: 500MHz
  • Data rate: Up to 10Gbps
  • PoE support: PoE / PoE+
  • Shielding: Unshielded (U/UTP)
  • Conductor: Stranded bare copper, AWG 32/7
  • Diameter: Ultra-slim 2.8mm cable
  • Jacket: LSZH/LSOH (Low Smoke Zero Halogen)
  • Compliance: ISO/IEC 11801, EN 50173, RoHS
  • Color: White
  • Length: 1.5m
  • The Cat.6A U/UTP Slim Patch Cable is designed for high-density network environments that require reliable 10 Gigabit Ethernet performance with efficient space utilization.

    This slim patch cable supports frequencies up to 500MHz and data transmission rates of up to 10Gbps, making it suitable for short-distance connections between switches, patch panels, servers, and network devices. The unshielded U/UTP structure is optimized for low to moderate EMI environments and supports PoE and PoE+ applications.

    With its ultra-slim 2.8 mm diameter and AWG 32/7 stranded bare copper conductors, the cable improves airflow and cable management in crowded racks without sacrificing signal integrity. The LSZH/LSOH jacket enhances safety by reducing smoke and toxic emissions, while molded boots with strain relief improve durability. The cable complies with ISO/IEC 11801, EN 50173, and RoHS standards for dependable enterprise and data center deployments.

    Más Información
    Features 1.
    Enchufe acodado No
    Cable plano No
    Blindado
    Miscellaneous.
    Blindaje U/UTP
    Conector 1 RJ45 macho
    Conector 2 RJ45 macho
    Others.
    Aprobación y conformidad RoHS
    Temperatura de funcionamiento -20°C ~ 60°C
    Contenido del paquete Cat.6A U/UTP Slim Patch Cable
    General.
    Color Blanco
    EAN 4015867241714
    Número de modelo 626004
    Physical Specifications.
    Longitud del cable 1.5m
    Dimensiones (An x Pr x Al) 11 x 15 x 1500 mm
    Peso del producto (kg) 0.0182
    System Specifications.
    Categoría Cat.6A
    Material conductor Cobre
    Tamaño del conductor (AWG) 32AWG
    Material de la cubierta del cable LSZH
