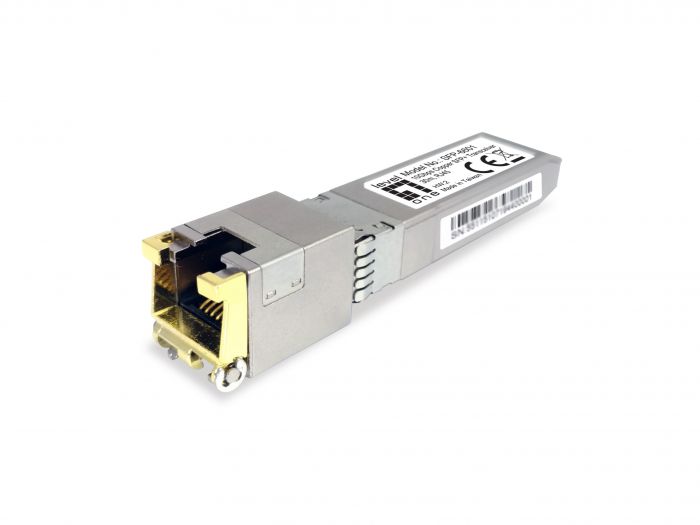

SFP-6601 10Gbps Copper SFP+ Transceiver, 30m, RJ45
Model Number.
SFP-6601
SKU
55115107201
The LevelOne SFP-6601 is the latest generation of 10Gbps copper SFP+ transceivers. It provides a powerful duplex data link for bidirectional communication over copper Ethernet cables. The SFP-6601 transmits data from 10GBase-T copper to SFP fiber optic interfaces at up to 10 Gbps and a maximum cable length of up to 30 meters over Category 6a and 7 twisted pair cables. Ideal for servers and storage systems requiring high bandwidths. The SFP-6601 offers system developers and planners a high degree of flexibility.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Miscellaneous. | |
| Fiber Optical Mode. | Both |
| Transceiver Type. | Copper SFP+ |
| Grade. | Commercial |
| Performance 2. | |
| Receiver sensitivity. |
• CE • CB • FDA 21 CFR 1040.10 and 1040.11 • FCC 47 CFR PART 15 SUBPART B • TUV • UL • RoHS |
| Physical Specifications. | |
| Dimensions (W x D x H). | 68 x 13.7 x 13.7 mm |
| Product weight (kg). | 0.024 |
| System Specifications. | |
| Data rate. | 10GBASE-T (Connect the CAT6a cable) |
| Standard. |
• IEEE 802.3an • IEEE 802.3az • SFP+ MSA • SFF-8431 |
| Others. | |
| Approval and Compliance. |
• CE • CB • FDA 21 CFR 1040.10 and 1040.11 • FCC 47 CFR PART 15 SUBPART B • TUV • UL • RoHS |
| Operating humidity. | 5% RH ~ 85% RH |
| Operating temperature. | 0°C ~ 70°C |
| Storage humidity. | 5% RH ~ 85% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
• SFP-6601 • Quick Installation Guide • Declaration of Conformity |
| General. | |
| Color. | Silver |
| EAN. | 4015867240571 |
| Model Number. | SFP-6601 |
