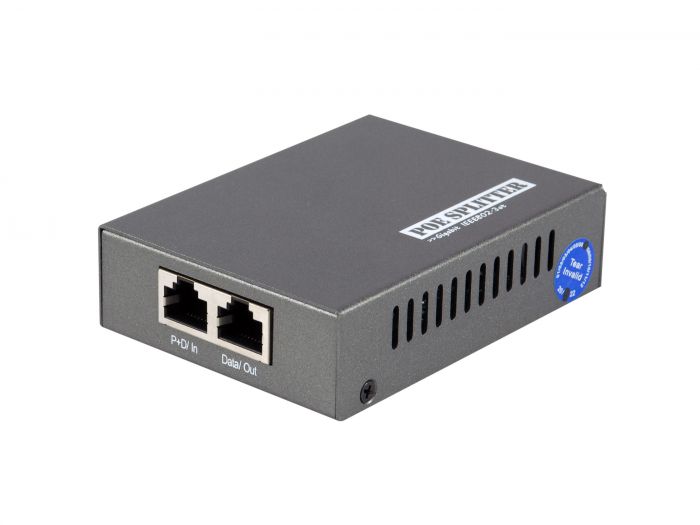

POS-3000 Gigabit PoE Splitter, 802.3at/af PoE, 5-18V DC Output
The LevelOne POS-3000 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V or 12V or 18V). Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.
| Port Configuration | |
|---|---|
| Data power RJ45 | 10/100/1000Mbps |
| Data RJ45 | 1 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
-Automatically detects PoE terminals and supplies inline power -Easily install non-PoE devices where a power outlet is not available -Reduce installation and network equipment costs -Safeguards network device with short circuit protection -Adjustable output DIP switch for 5V, 12V, and 18V adjustable output -Converts Non-PoE devices with Power Over Ethernet Support -Provides Interchangeable tips -DC Pin:5.5*2.5*12 mm , 5.5*2.1*12 mm , 4.8*1.7*12 mm , 3.5*1.3*12 mm, |
| PoE Features. |
-Auto-sensing power drawn from 802.3at power source equipment (PSE) devices -Supplies power up to 12-25 watts Power Output: 5V/3.5A; 12V/2A;18V/1A |
| Physical Specifications. | |
| Dimensions (W x D x H). | 92 x 60 x 27 mm |
| Product weight (kg). | 0,085 |
| System Specifications. | |
| Indicators. | Link/Act |
| Power consumption. | <5 W |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet (PoE+) |
| Others. | |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | 0°C ~ 45°C |
| Package Contents. |
POS-3000 Quick Installation Guide |
| General. | |
| Color. | Black |
| EAN. | 4015867226698 |
| Model Number. | POS-3000 |
