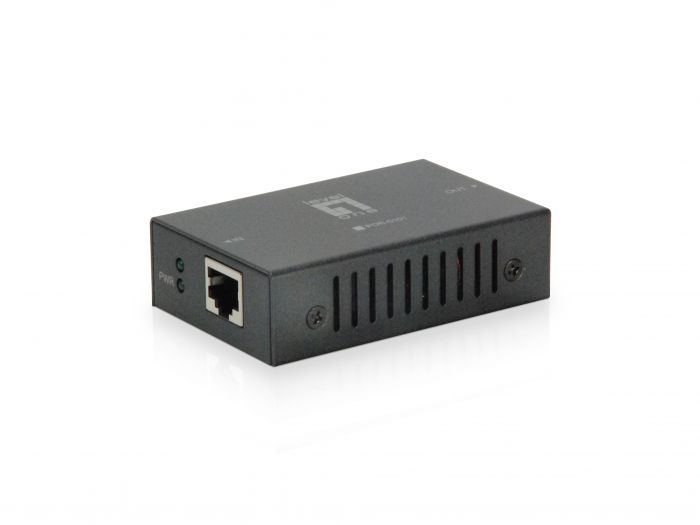

POR-0101 PoE+ Repeater, LevelOne
Model Number.
POR-0101
SKU
55205507
For system integrators looking for a professional solution to help extend their PoE network, POR-0101 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0101, a 1-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters. The delivery though one PoE port and one non-PoE port are adequate to extend network devices such as WLAN Access Points, Network Cameras and other appliances with high-speed to the network for greater deployment flexibility.
Port Configuration | |
---|---|
Fast Ethernet RJ45 | 2 |
Logistics Data. | |
Harmonized System (HS) code. | 851762 |
Customs product code (TARIC). | 8517620000 |
General. | |
Color. | Grey |
EAN. | 4015867191279 |
Model Number. | POR-0101 |
Physical Specifications. | |
Dimensions (W x D x H). | 80 x 70 x 23 mm |
Product weight (kg). | 0,2 |
System Specifications. | |
Data Rate. | 100Mbps |
Indicators. | Power, PoE In, PoE Out |
Mount. | Wall mount |
Cascadable. | No |
Standard. |
IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) |
Others. | |
Operating humidity. | 5% RH ~ 95% RH |
Operating temperature. | 0°C ~ 50°C |
Package Contents. |
POR-0101 Quick Installation Guide |
