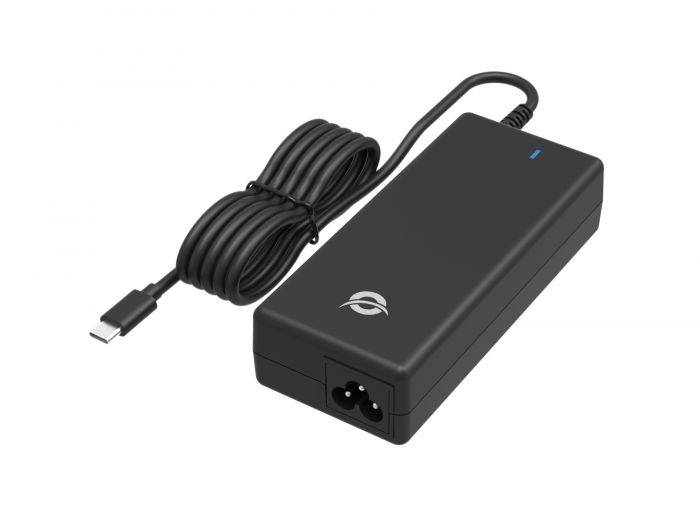

OZUL03BE 100W GaN USB PD Charger with Built-in USB-C Cable, PPS, PD 3.0
Model Number.
OZUL03BE
SKU
120549303101
This charger utilizes advanced Gallium Nitride (GaN) technology, providing up to 100W of total power for faster and more efficient charging. It supports a range of output options from 5.0V to 20.0V, ensuring compatibility with devices from smartphones to laptops. Enhanced safety features include built-in protections against overload, short-circuiting, and overheating, ensuring the safety of both the charger and connected devices. The charger incorporates USB Power Delivery (PD) 3.0 for rapid charging and is compliant with Programmable Power Supply (PPS) to maximize charging efficiency and minimize heat generation. Additionally, it features a built-in 1.5m USB-C cable and a detachable 1.2m AC power cable for convenience and versatility.
| Technical Details. | |
|---|---|
| Number of cartons per pallet. | 36 piece |
| Package Volume. | 1545.6 cubic_centimeter |
| Pallet Net Depth. | 800 millimeter |
| Pallet Net Width. | 1200 millimeter |
| Pallet Net Height. | 2000 millimeter |
| Packaging Content. | |
| Cables included. | AC, USB Type-C |
| Power Plug Type. | EU |
| Ports & Interfaces. | |
| USB Power Delivery revision | 3.0 |
| Performance 1. | |
| Number of simultaneously connected devices (max). | 1 |
| Port 1 Power Output. | output: DC 5.0V/3.0A, 9.0V/3.0A, 12.0V/3.0A, 15.0V/3.0A, 20.0V/5.0A (PD); 5.0~20.0V/5.0A (PPS) |
| Programmable power supply (PPS) (YES/NO). | Yes |
| USB Type-C ports quantity. | 0 |
| Fast charging technology. | Power Delivery 3.0, Programmable Power Supply (PPS) |
| USB Type-A ports quantity. | 0 |
| Number of outputs. | 1 |
| Housing Material. | Polycarbonate (PC) |
| Features 2. | |
| Cable length. | 150 centimeter |
| Logistics Data. | |
| Harmonized System (HS) code. | 850440 |
| Customs product code (TARIC). | 8504408390 |
| Quantity per Pallet. | 720 piece |
| Power. | |
| Input current. | 1.8 ampere |
| Maximum AC Input. | 240 volt |
| Minimum AC Input. | 100 volt |
| Maximum power. | 100 watt |
| Power Protection Features. | Over current, Over power, Short circuit |
| Sustainability. | |
| Sustainability Compliance. | No |
| Operational Conditions. | |
| Operating temperature (T-T) Max. | 35 celsius |
| Operating temperature (T-T) Min. | -20 celsius |
| Storage relative humidity (H-H) Max. | 90% |
| Storage relative humidity (H-H) Min. | 5% |
| Operating relative humidity (H-H) Max. | 90% |
| Operating relative humidity (H-H) Min. | 5% |
| Storage temperature (T-T) Max. | 80 celsius |
| Storage temperature (T-T) Min. | -20 celsius |
| Packaging Data. | |
| Quantity per Pack. | 1 piece |
| Package Depth. | 140 millimeter |
| Package Height. | 184 millimeter |
| Package Width. | 60 millimeter |
| Product Gross Weight. | 54 gram |
| System Specifications. | |
| Power input. | AC 100-240V 50/60Hz, 1.8A max |
| Others. | |
| Approval and Compliance. | CE, RoHS |
| Package Content. | Quick installation guide |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | -20°C ~ 35°C |
| Storage temperature. | -20°C ~ 80°C |
| Package Contents. |
OZUL03BE Power cable Multilingual quick installation guide |
| General. | |
| Color. | Black |
| EAN. | 4015867230688 |
| Model Number. | OZUL03BE |
| Physical Specifications. | |
| Product weight (kg). | 0.22 |
| Dimensions (W x D x H). | 131.5 × 57.5 × 31 mm |
| Product Height. | 31 millimeter |
| Product Width. | 131.5 millimeter |
| Product Depth. | 57.5 millimeter |
| Product Net Weight. | 220 gram |
