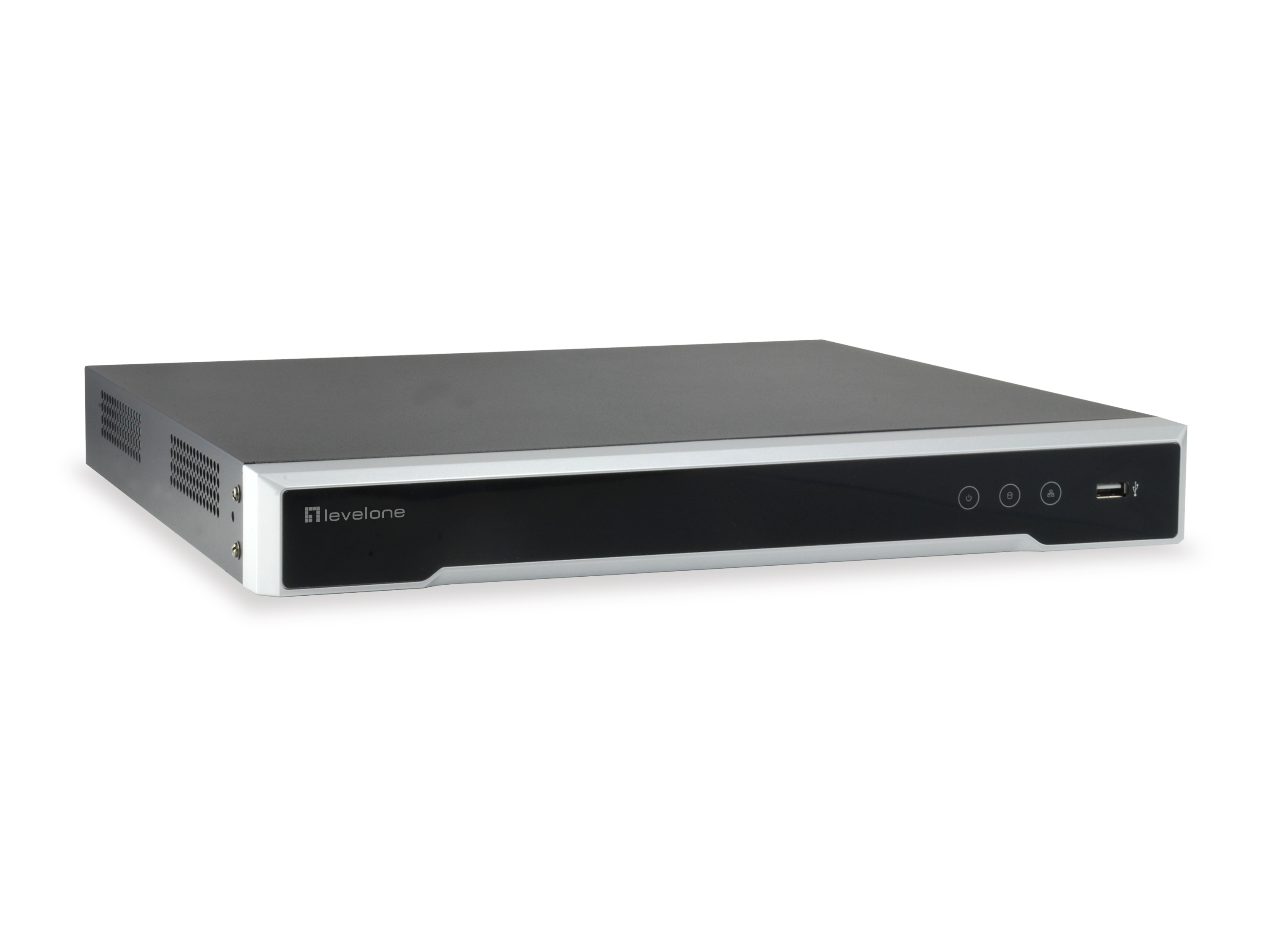

NVR-0508, GEMINI 8-CH PoE Network Video Recorder
The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264 video compression. Operation is easy and intuitive via the web browser interface EDGE, enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app. Each 2 HDD bays disk capacity of up to 10TB . making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network.An integrated 8-port PoE switch enables the NVR to connected PoE cameras.
The Guarding Vision Central Management System(CMS) software is included for free, with no license fees. The Guarding Vision CMS is capable of managing up to 256 channels, making it suitable for large scale surveillance applications.
| Features 1. | |
|---|---|
| Features. |
Pre-Recording / Post-Recording Search Date / Time / Event Export video by USB / Web browser / CMS Liveview & Playback on Smart phone iOS, Android Basic Event : Motion, Video Tampering, Video Loss Alarm, Input Alarm Output Exception Smart Event Compatibility With Camera : Facial DetectionLine Crossing Detection, Intrusion |
| Miscellaneous. | |
| Max. channels. | 8 |
| RAID supported. | No |
| Physical Specifications. | |
| Dimensions (W x D x H). | 315 x 52 x 385 mm |
| Product weight (kg). | 3 |
| System Specifications. | |
| Number of client. | 64 |
| Drive bays. | 2 |
| Indicators. |
Power Alarm H.D.D. LINK/ACT |
| Port Configuration. | RJ-45 (PoE x8), RJ45(1000/100/10 Mbps)x1 ,USB2.0 x2 , HDMI, VGA, AUDIO,, Alarm |
| Power consumption. |
Total:180 W PoE:120W |
| Power supply included. | No |
| Protocols. | Http, Https, SNMP, NTP, IPv4, IPv6, TCP, UDP, SNTP, FTP, DHCP, DDNS, PPPoE, RTP, SSL, SMTP, RTSP |
| Resolution. |
Recording at up to 8MP resolution Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/CIF/QCIF Capability: 2-ch @ 4K, or 8-ch @ 1080p HDMI Video Output at up to 4K (3840 *2160) Resolution |
| Resolutions. | 3840*2160@15fps |
| Supported storage capacity. | 20 TB |
| Supported drive capacity. | 10 TB |
| Video Bandwidth. |
Incoming bandwidth: 80 Mbps Outgoing bandwidth: 160 Mbps |
| Number of video channel. | 8 |
| Video format. | H.264.H.265 |
| Others. | |
| Approval and Compliance. | CE/FCC,uL |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | -10°C ~ 55°C |
| Supported browsers. |
EDGE for all operation . Chrome ,Firefox for vie only ,with plug VLC . |
| Package Contents. |
NVR-0508 Power Cord Screw HDD QIG |
| General. | |
| Color. | Black |
| EAN. | 4015867236000 |
| Model Number. | NVR-0508 |
Download PDF
