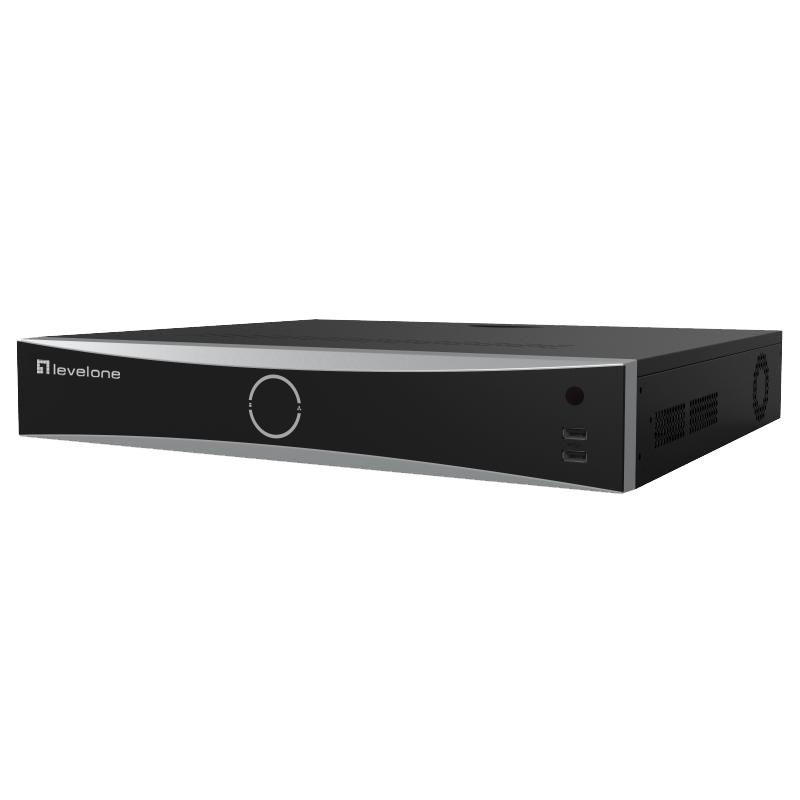

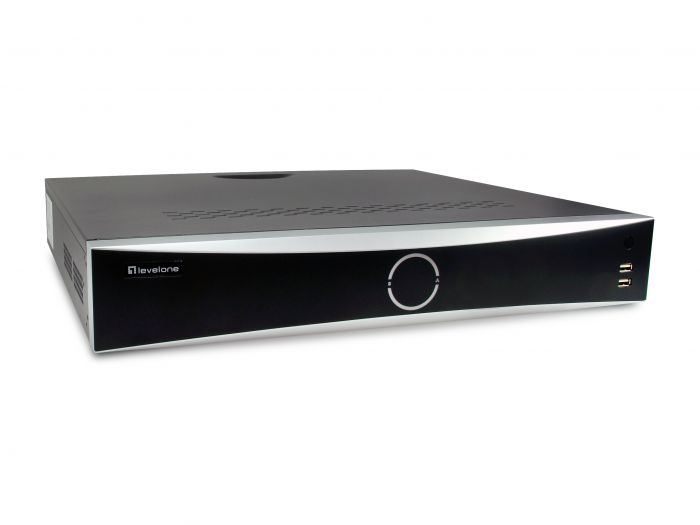

NVR-0411, GEMINI 32-CH Network Video Recorder, 16-Port PoE, 4-Bay
The LevelOne NVR-0411 NVR enables live view, recording and playback for up to 32 IP network cameras at the same time, featuring up to 12-megapixel resolution and H.265/H.264+/H.264 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app. 4 HDD bays complete the package, with a disk capacity of up to 10TB making the LevelOne NVR-0411 a powerful, smart and cost-effective solution for managing your security network.
The Guarding Vision Central Management System(CMS) software is included for free, with no license fees. The Guarding Vision CMS is capable of managing up to 256 channels, making it suitable for large scale surveillance applications.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852190 |
| Customs product code (TARIC). | 8521900000 |
| Features 1. | |
| Features. |
Decoding Capability: AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) Intelligent Analytics Support: AI by NVR- Facial recognition, perimeter protection, motion detection 2.0 AI by Camera - Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
| Miscellaneous. | |
| Max. channels. | 32 |
| RAID supported. | No |
| Physical Specifications. | |
| Dimensions (W x D x H). | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0" |
| Product weight (kg). | 5 |
| System Specifications. | |
| Drive bays. | 4 |
| Indicators. | Power/Record/Act/PoE |
| Number of battery. | 1 |
| Port Configuration. | RJ-45*1, 16* PoE, HDMI/VGA/e-SATA |
| Power consumption. |
<200W include PoE full outpput <20 W (without HDD and PoE off) |
| Power supply included. | Yes |
| Resolution. |
Recording Resolution : 12MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCI |
| Resolutions. | 4096*2160@30fps |
| Standard. | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,SNMP,RTSP,FTP,DHCP,DDNS, PPPoE, SSL, RTP |
| Supported storage capacity. | 10 TB |
| Supported drive capacity. | 10 TB |
| Video Bandwidth. | Incoming/Outgoing :256Mbps /160Mbps |
| Number of video channel. | 32 |
| Video format. | H.265+/H.265/H.264/H.264+ |
| Others. | |
| Approval and Compliance. | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -10°C ~ 55°C |
| Supported browsers. | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Package Contents. |
19" Rack Mount Kit Power cord Screw Mouse RJ-45 terminal block x 4 SATA cable x5 H.D.D Power cable x4 Quick Installation Guide Declaration of Conformity |
| General. | |
| Color. | Black |
| EAN. | 4015867236802 |
| Model Number. | NVR-0411 |
