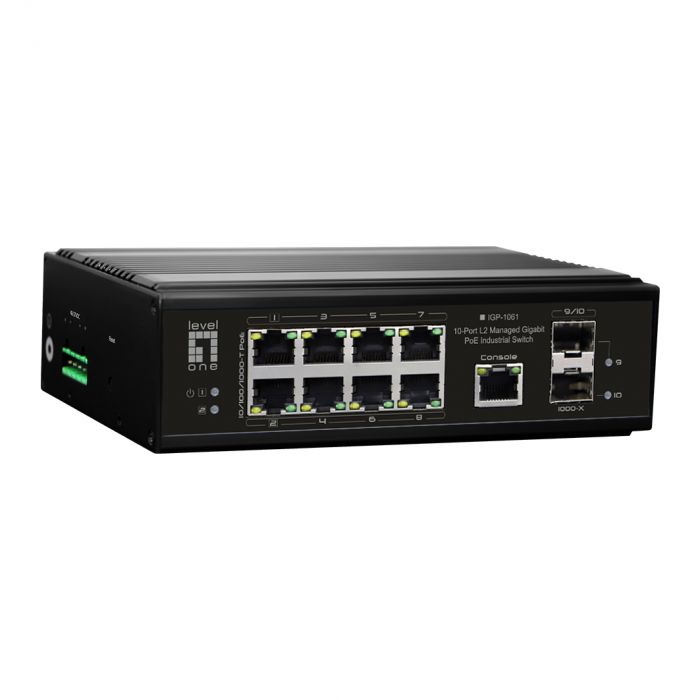

IGP-1061 10-Port L2 Managed Gigabit PoE Industrial Switch, 802.3AT/AF/BT PoE, DIN-RAIL, -40°C to 75°C, 360W
Model Number.
IGP-1061
SKU
55053407101
The LevelOne IGP-1061 L2 Managed Gigabit PoE Industrial Switch, provides 8 PoE ports 10/100/1000Base-T plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at/bt PoE standard at maximum 90W(1-2 port) power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Input |
| Features 1. | |
| Features. |
L2 Features : 1. Port configuration ● Auto-negotiation ● Flow Control ● Port Mirror ● Traffic statistics 2. Link Aggregation : ● Static link aggregation ● LACP ● Algorithm based on Source/Destination MAC ● Algorithm based on Source/Destination IP ● 8 groups ● 8 ports per group 3. MAC Table : ● Aging Time ● Static MAC address ● Dynamic MAC address management 4. VLAN : ● 4K Active VLANs ● 4K VID ● 802.1Q Tag VLAN ● Port VLAN ● Protocol VLAN ● MAC VLAN ● Management VLAN ● Voice VLAN ● Q-in-Q 5. ACL : ● 64 ACLs ● L2, L3 e L4 ● Time-based ACL 6. Spanning tree : ● 802.1D Spanning Tree Protocol (STP) ● 802.1w Rapid Spanning Tree Protocol (RSTP) ● 802.1s Multiple Spanning Tree Protocol (MSTP) ● Loop Guard ● Root Guard ● TC-BPDU Guard ● BPDU Guard ● BPDU Filter 7. Ring protocol : ● MSTP/EAPS/ERPS 8. Multicast : ● 256 groups ● IGMP v1/v2/v3 ● Fast Leave ● Multicast VLAN ● Static Multicast ● Multicast Filter ● IGMP Statistics ● MLD Snooping 9. PoE management : ● Support total power consumption control ● Support single port PoE ON/OFF ● Support port output priority 10. QoS : ● 4 priority queues ● CoS port-based ● CoS 802.1p-based ● CoS DSCP-based ● Scheduling algorithms SP, WRR, SP+WRR ● Storm Control (Broadcast, Multicast, Unknown Unicast) ● Bandwidth control per port Other Features : ● DHCP Relay ● DHCP Client ● DHCP Snooping ● DHCP Option 82 ● SNTP Client ● BOOTP Client Maintenance : ● Ping and Tracert ● System log (Local and Remote) ● Memory and CPU Monitoring |
| Management. |
Management : ● SNMP v1/v2c/v3 ● RMON 4 grupos ● WEB (HTTP/HTTPS) ● CLI (Telnet, Console, SSHv1/v2) ● Firmware upgrade via console/web/TFTP ● Configuration Backup/Reload ● All possible configurations in the CLI must exist in the WEB interface ● LLDP |
| Security. |
Security : ● Port Security ● MAC address filter ● ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries ● ARP Protection ● DoS (Denial of Service) ● Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type ● 802.1x Autentication (port-based e MAC-based) ● TACACS/TACACS+ Autentication ● RADIUS Autentication ● DHCP Filter ● Guest VLAN ● SSLv2/SSLv3/TLSv1 ● SSHv1/SSHv2 ● Restriction of WEB access based on: IP Address, And. MAC and Port ● Port Isolation ● Local User Name Password Authentication (2 levels) ● Loopback detection |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | Yes |
| Fanless. | Yes |
| Concurrent ports. | Total 10.00 |
| PoE Power Budget. | Total 360.00 |
| Physical Specifications. | |
| Product weight (kg). | 0.5 |
| Dimensions (W x D x H). | 165 x 115 x 50 mm |
| System Specifications. | |
| Power supply. | Input: DC 48~57V |
| Data Rate. | 1Gbps |
| Power supply included. | No |
| Power input. | Redundant Dual DC 48V-57V |
| Power consumption. |
● 5W (without PoE) ● 380W (full loading PoE on) |
| MTBF. | 338,634 hrs |
| Port Configuration. | 8*10/100/1000 RJ-45(PoE), 2*1000 Mbps SFP |
| Standard. |
● IEEE 802.3 10-BASE-T, Ethernet ● IEEE 802.3u 100-BASE-TX, Fast Ethernet ● IEEE 802.3ab 1000Base-T Gigabit Ethernet ● IEEE 802.3z 1000Base-X Gigabit Ethernet ● IEEE802.3x Flow Control and Back Pressure ● IEEE802.3af ● IEEE802.3at ● IEEE802.3bt |
| Acoustic noise (dB). | 0 dB |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | Desk mount, DIN rail mount |
| Flash memory size. | 128 MB |
| RAM size. | 1024 MB |
| MAC address table. | 8 K |
| Jumbo frame (KB). | 10 KB |
| Indicators. |
● Power : Red ● Act/Link : Green ● PoE : Yellow |
| Packet buffer. | 1 Mbits |
| Backplane (Gbps). | 20 |
| Others. | |
| Approval and Compliance. |
● CE ● RoHS |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
● IGP-1061 ● Power Terminal Block ● Console Cable ● Din-rail Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color. | Black |
| EAN. | 4015867227886 |
| Model Number. | IGP-1061 |
