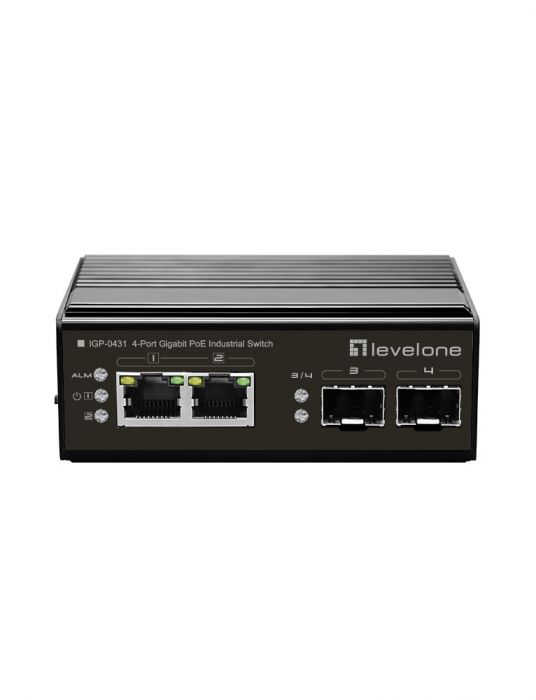

IGP-0431, 4-Port Gigabit PoE Industrial Switch, DIN-Rail, -40°C to 75°C, 180W
Model Number.
IGP-0431
SKU
55053007
LevelOne IGP-0431 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at/bt PoE standard at maximum 90W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
| Port Configuration | |
|---|---|
| Gigabit RJ45 | 2 |
| Gigabit SFP | 2 |
| 802.3af/at PoE | 2 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Input |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | Total 4.00 |
| PoE Power Budget. | Total 180.00 |
| Physical Specifications. | |
| Product weight (kg). | 0.3 |
| Dimensions (W x D x H). | 130 x 110 x 62 mm |
| System Specifications. | |
| Power supply. | VDC 48~57V |
| Data Rate. | 1Gbps |
| Power supply included. | No |
| Power input. | Redundant Dual DC 48V-57V |
| Power consumption. | <5W |
| Port Configuration. | 2 port 10/100/1000 Mbps RJ45 and 2 port Gigabit SFP |
| Standard. |
IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Full Duplex and flow control IEEE 802.3z Gigabit Ethernet over Fiber-Optic IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Power Output. | Provides 2 high power PoE ports, up to 90W single port |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | DIN rail mount |
| MAC address table. | 8K |
| Indicators. |
Power Alarm/Act PoE 10/100/1000Mbps |
| Packet buffer. | 5.95 Mpps |
| Backplane (Gbps). | 8 |
| Others. | |
| Approval and Compliance. |
CE/FCC IEC61000-4-2(ESD: 6KV:contact / 8KV:air) IEC61000-4-5(Surge: 6KV) |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
IGP-0431 Power Terminal Block Quick Installation Guide |
| General. | |
| Color. | Black |
| EAN. | 4015867223956 |
| Model Number. | IGP-0431 |
