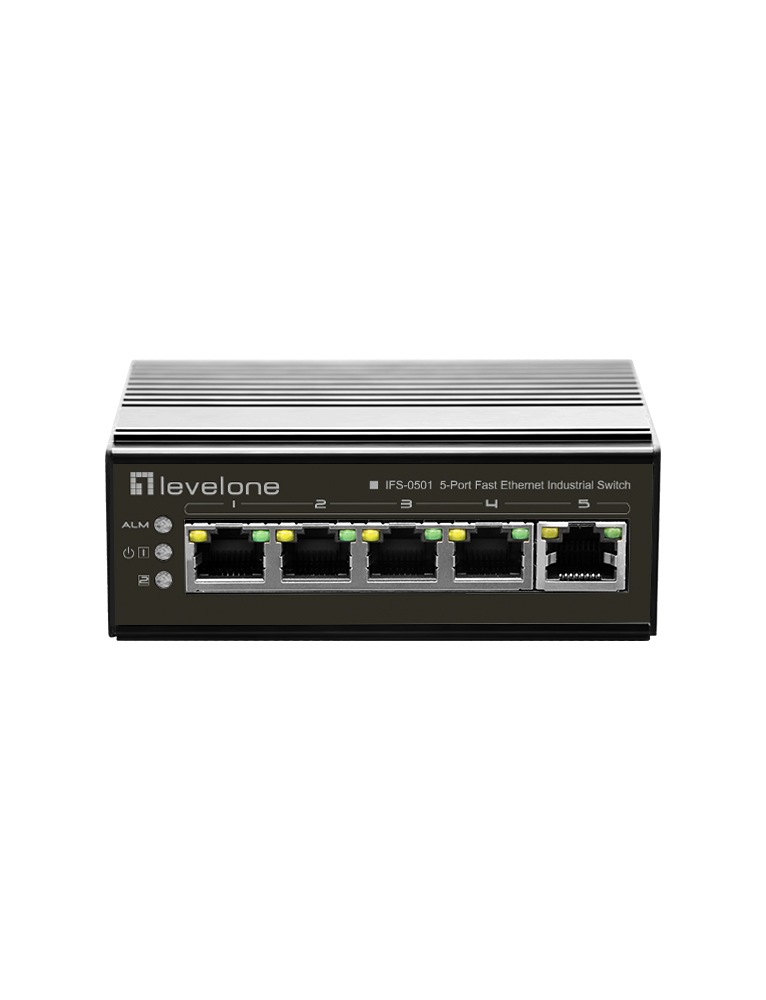

IFS-0501 5-Port Fast Ethernet Industrial Switch, DIN-Rail,-40°C to 75°C
Model Number.
IFS-0501
SKU
55050107201
The LevelOne IFS-0501 Industrial Fast Ethernet Switch provides 5 ports at 10/100M TX to enable high speed network in mission-critical environments. With an industrial standard DIN-rail mount, this switch can be installed in a cabinet, and clearly visible status LEDs provide simple monitoring of port link activity. The switch is housed in a solid metal case rated at IP30, keeping it safe from dust, vibration, heat and humidity, while an operational temperature range of -40°C to +75°C makes it suitable for deployment in almost any environment.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
Supports relay alarm for power off, network broken; Supports 6KV surge protection, 6KV contact / 8KV air ESD protection; |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | No |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | Total 5.00 |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Power supply included. | No |
| Power input. | VDC 12-60 |
| Power consumption. | <5W |
| MTBF. | 300,000 hours |
| Packet forwarding rate. | Thoughput 0.74 Mbps |
| Standard. |
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) |
| Mount. | DIN rail mount |
| MAC address table. | 8K |
| Jumbo frame (KB). | 1092 |
| Indicators. | Power /Lin Act |
| Packet buffer. | 1M |
| Backplane (Gbps). | 1Gbps |
| Others. | |
| Approval and Compliance. | CE/FCC |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 80°C |
| Package Contents. |
Power Terminal Block, Quick Installation Guide, Din-rail Mount Kit |
| General. | |
| Color. | Black |
| EAN. | 4015867224229 |
| Model Number. | IFS-0501 |
| Physical Specifications. | |
| Product weight (kg). | 0.35 |
| Dimensions (W x D x H). | 101×65×36 |
