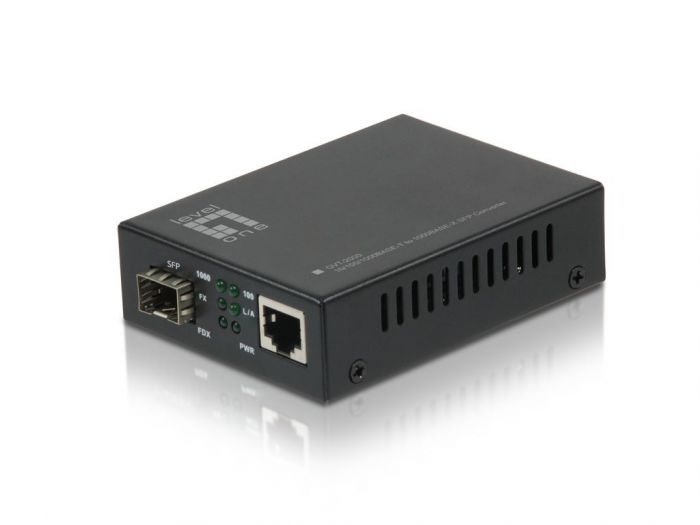

GVT-2000 RJ-45 to SFP Gigabit Ethernet Media Converter
Model Number.
GVT-2000
SKU
540678
The GVT-2000 media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a SFP slot for 1000Base-X Gigabit optic module and a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing.The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.The GVT-2000 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
DIP Switch 1: LFP function DIP Switch 2 : Flow Control function |
| Miscellaneous. | |
| Fiber Optical Mode. | Both |
| Media Interface. | RJ45 to SFP |
| PoE Supported. | No |
| Manageable. | No |
| Grade. | Commercial |
| Physical Specifications. | |
| Dimensions (W x D x H). | 94 x 70 x 25 mm |
| Product weight (kg). | 0,42 |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Indicators. |
• PWR • FDX • Link/Act • FX • 100/1000 |
| MTBF. | 50,000 hrs |
| Power consumption. | 1.2W |
| Power supply included. | Yes |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.3z 1000Base-SX/LX, |
| Transmission Method. | Store and forward (Default) |
| Wavelength (nm). | Depend on SFP fiber optical transceiver |
| Others. | |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | -10°C ~ 55°C |
| Package Contents. |
• GVT-2000 • Power Adapter • Quick Installation Guide |
| General. | |
| Color. | Black |
| EAN. | 4015867185179 |
| Model Number. | GVT-2000 |
