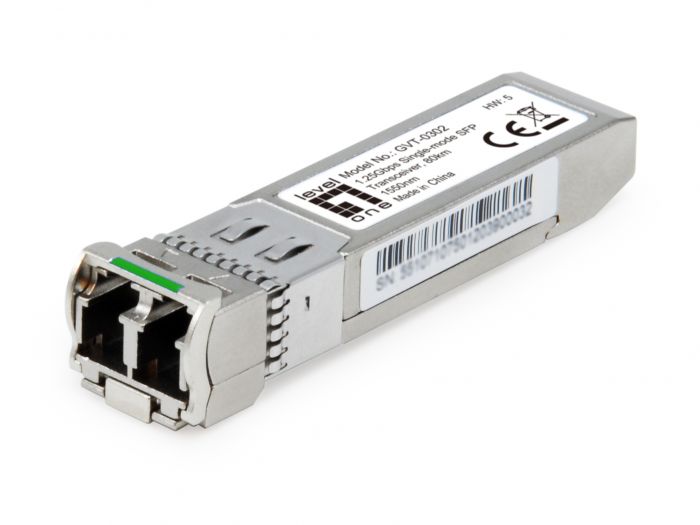

GVT-0302, 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm
Model Number.
GVT-0302
SKU
55107207501
The levelOne GVT-0302 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it has increased transmission power to reach a distance of up to 80km. The GVT-0302 transceiver operates using a wavelength of 1550nm with a DFB Laser Diode light source and has an LC port.
| Port Configuration | |
|---|---|
| Gigabit single-mode LC | 1 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
• DDM (Digital Diagnostics Monitoring) • Hot-swappable |
| Miscellaneous. | |
| Fiber Optical Mode. | Single-Mode |
| Transceiver Type. | SFP |
| Grade. | Commercial |
| Performance 2. | |
| Receiver sensitivity. | -25dBm |
| Physical Specifications. | |
| Dimensions (W x D x H). | 14 x 57 x 12 mm |
| Product weight (kg). | 0.02 |
| System Specifications. | |
| Standard. |
• 1000BASE-ZX • SFP MSA SFF-8074i Compliant |
| Wavelength (nm). | 1550nm (DFB Laser Optical Components) |
| Others. | |
| Approval and Compliance. |
• CE • EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B • Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2 • RoHS compliant with 2002/95/EC 4.1&4.2 2005/747/EC • ISO 14001:2015 • ISO 9001:2015 • ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015 • ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2 • Immunity compatible with IEC 61000-4-3 |
| Operating humidity. | 0% RH ~ 85% RH |
| Operating temperature. | 0°C ~ 70°C |
| Package Contents. |
• GVT-0302 • Quick Installation Guide |
| General. | |
| Color. | Silver |
| EAN. | 4015867224403 |
| Model Number. | GVT-0302 |
