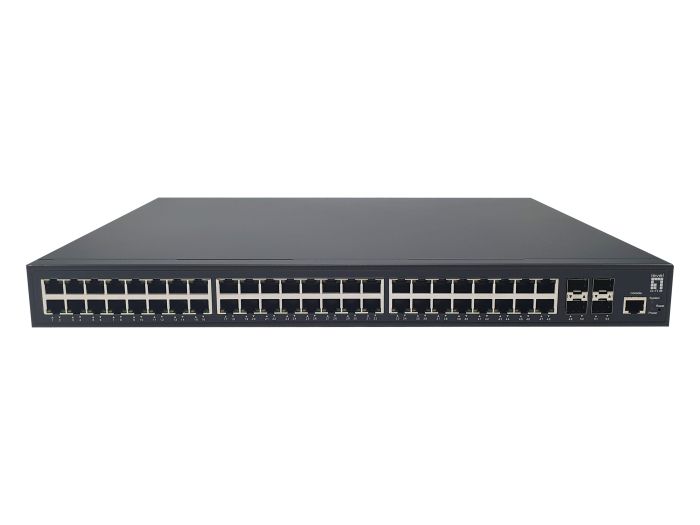

GTP-5271 52-Port L3 Lite Managed Gigabit PoE Switch, 802.3af/at PoE, 48 PoE+ Outputs, 400W Power Budget, 4 x 10G SFP+ Uplinks
Model Number.
GTP-5271
SKU
57082103201
The LevelOne GTP-5271 is a high-density 52-port L3 Lite managed Gigabit PoE switch designed for enterprise, campus and city-wide surveillance networks. With 48 Gigabit PoE+ access ports and 4 x 10G SFP+ uplinks, it delivers powerful aggregation to core or data-center switches while supplying power and data to large fleets of IP phones, wireless access points and IP cameras.
Combining comprehensive L2 features with L3 Lite static routing, the GTP-5271 simplifies network segmentation, offloads routers and optimizes east-west traffic within branch or building networks. An IEEE 802.3af/at-compliant 400W PoE budget provides up to 30W per port, and Extended PoE mode supports distances up to 250 m at 10 Mbps for remote devices.
Dual-stack IPv4/IPv6 support, VLAN and QoS, IGMP Snooping, storm control and LACP link aggregation ensure reliable delivery of voice, video and data services. With an intuitive web/SNMP management interface, the GTP-5271 offers an efficient, scalable and cost-effective platform for modern PoE-driven infrastructures.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
Layer 2 ring network protocol ● Support STP、RSTP、MSTP ● Support G.8032 ERPS protocol，single ring, sub ring and other ring VLAN ● Support access, trunk and hybrid mode VLAN Classification ● Mac Based VLAN ● IP Based VLAN ● Protocal Based VLAN QinQ ● Basic QinQ (Port-based QinQ) ● Flexible Q in Q (VLAN-based QinQ) ● QinQ (Flow-based QinQ) Port mirroring ● Many to one (Port Mirroring) DHCP ● DHCP Client ● DHCP Snooping ARP ● ARP table aging Multicast ● IGMP V1,V2,V3 ● IGMP snooping ACL ● IP Standard ACL ● MAC extend ACL ● IP extend ACL QoS ● QoS Class, Remarking ● Support SP, WRR queue scheduling ● Ingress Port-based Rate-limit ● Egress Port-based Rate-limit ● Policy-based QoS Layer 3 routing features ● IPv4/IPv6 Static Routing |
| Management. |
● LLDP ● User management and login authentication ● SNMP V1/V2C/V3 ● Web management，HTTP1.1，HTTPS ● Syslog and alarm grading ● RMON (Remote Monitoring) alarm, event and history record ● NTP ● Temperature monitoring ● Ping、Tracert ● Support optical transceiver DDM function ● TFTP Client ● Telnet Server ● SSH Server ● IPv6 management ● PoE management ● FTP，TFTP，WEB upgrading |
| Security. |
● Dot1x，port authentication ● Mac authentication ● RADIUS service ● Port-Security ● IP source guard，IP/Port/MAC binding ● ARP-check and ARP packet filtering for illegal users ● Port isolation |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | Yes |
| Fanless. | No |
| Concurrent ports. | Total 52.00 |
| PoE Power Budget. | Total 400.00 |
| Performance 2. | |
| Switching capacity. | 336 Gbps |
| System Specifications. | |
| Power supply. | 100-240 VAC, 50-60 Hz |
| Data Rate. | 10Gbps, 1Gbps |
| Power supply included. | Yes |
| Power consumption. | 440W (full loading PoE on) |
| MTBF. | 534,057 hrs |
| Heat dissipation. | 136.48 BTU/hr |
| Packet forwarding rate. | 499.9 Mpps |
| Port Configuration. | 48× 10/100/1000 Mbps RJ-45 PoE+ ports, 4× 1/2.5/10 GbE uplink SFP+ ports |
| Standard. |
● IEEE 802.3u 100BASE-TX, Fast Ethernet ● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet ● IEEE 802.3z 1000BASE-X, Gigabit Ethernet ● IEEE 802.3x for full-duplex mode ● IEEE 802.1D Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances ● IEEE 802.1Q VLAN ● IEEE 802.1v protocol-based VLAN ● IEEE 802.3ad Link Aggregation Control Protocol ● IEEE 802.1p CoS ● IEEE 802.1X port based and MAC based authentication ● IEEE 802.3ah Ethernet Link OAM ● IEEE 802.1ag Connectivity Fault Management |
| Acoustic noise (dB). | 45 |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | 19" rack mount, Desk mount |
| Flash memory size. | 512 MB |
| RAM size. | 256 MB |
| MAC address table. | 16 K |
| Jumbo frame (KB). | 10 |
| Indicators. |
● Power ● Link/Active ● PoE |
| Packet buffer. | 12 Mbits |
| Backplane (Gbps). | 336 Gbps |
| Others. | |
| Approval and Compliance. |
● FCC Part 15 Subpart B ● CE Mark ● EN IEC 62368-1 ● EN 55032 ● EN 55035 ● EN 61000-3-2/3 ● RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 50°C |
| Storage humidity. | 5% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 75°C |
| Package Contents. |
● GTP-5271 ● Console Cable ● Power Cord ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color. | Grey |
| EAN. | 4015867228586 |
| Model Number. | GTP-5271 |
| Physical Specifications. | |
| Product weight (kg). | 4.2 |
| Dimensions (W x D x H). | 440 x 300 x 44 mm |
