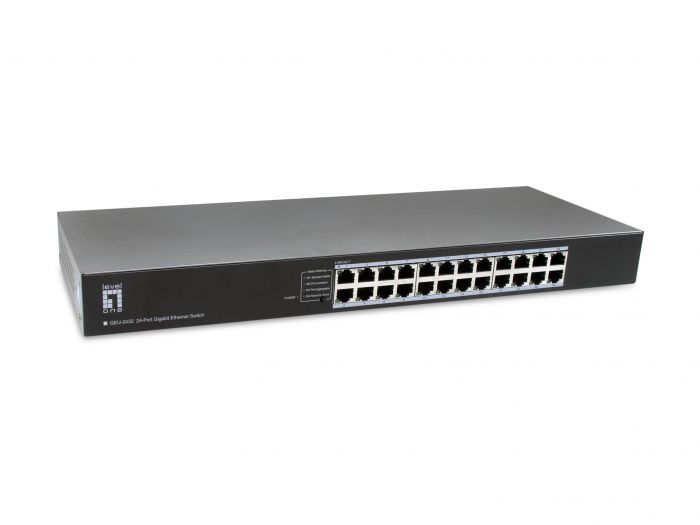

GEU-2432 24-Port Gigabit Ethernet Switch
Model Number.
GEU-2432
SKU
53016817101
- 24 Gigabit Ethernet ports
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- 6KV surge protection level on each port
- 4-Mode Button Control : Standard/Port Isolation/Port Aggregation/Network Clone
- 19-inch rackmount kit included
The GEU-2432 pushes a full 1 Gbps across all 24 ports for lightning-fast transfer of high-bandwidth files. A standout feature is its one-touch DIP-switch: a single press instantly cycles through four factory-tuned modes—Standard, Port Isolation, Port Aggregation, and Network Clone—so you can adapt the switch to any scenario in seconds, without software or downtime.
Built-in Nway auto-negotiation automatically selects the optimal link speed (10/100/1000 Mbps) and duplex setting, while Auto-MDI/MDI-X frees you from crossover-cable concerns. Front-panel LEDs provide at-a-glance insight into port status and overall network health, keeping management effortless.
| Logistics Data. | |
|---|---|
| Customs product code (TARIC). | 8517620000 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | No |
| Manageable. | No |
| Fanless. | Yes |
| Physical Specifications. | |
| Product weight (kg). | 1.334 |
| Dimensions (W x D x H). | 440 x 160 x 44 mm |
| System Specifications. | |
| Power supply. | 100-240 V AC, 50/60 Hz, Max. 0.7 A |
| Data Rate. | 1Gbps |
| Standards. | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet |
| Power supply included. | Yes |
| Power consumption. | 18 W (Max) |
| Packet forwarding rate. | 35.71 Mpps |
| Acoustic noise (dB). | 0 |
| Mount. | 19" rack mount, Desk mount |
| MAC address table. | 8 K |
| Indicators. |
● Power Indicator ● Link/Act Indicator ● Working Mode Indicator |
| Dip switch. | Standard, Port Isolation, Port Aggregation, Network Clone |
| Packet buffer. | 4.1 Mbits |
| Backplane (Gbps). | 48 |
| Others. | |
| Approval and Compliance. |
● CE ● RoHS |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | 0°C ~ 40°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
● GEU-2432 ● Power Cord ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color. | Grey |
| EAN. | 4015867241264 |
| Model Number. | GEU-2432 |
