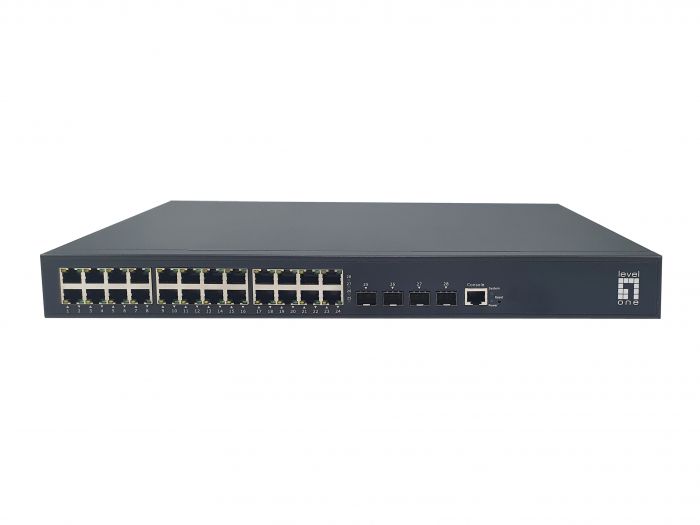

GEL-2871 28-Port L2 Plus Managed Gigabit Switch, 24x 1GbE RJ45, 4x 1/2.5GbE SFP
The LevelOne GEL-2871 is an intelligent 28-Port L2 plus managed gigabit switch with 24 RJ45 ports, 4 x 1/2.5GbE SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.
The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-2871 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.
An ideal network solution for anyone looking for an affordable and efficient way to expand their network.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| General. | |
| Color. | Black |
| EAN. | 4015867228579 |
| Model Number. | GEL-2871 |
| Features 1. | |
| Features. |
Port aggregation ● Support GE port, 2.5GE aggregation ● Support static and dynamic aggregation VLAN ● Mac Based VLAN ● IP Based VLAN ● Protocol Based VLAN ● Support access, trunk and hybrid mode QinQ ● Basic QinQ (Port-based QinQ) ● Flexible Q in Q(VLAN-based QinQ) ● QinQ(Flow-based QinQ) Port mirroring ● Many to one (Port Mirroring) Layer 2 ring network protocol ● Support STP、RSTP、MSTP ● Support G.8032 ERPS protocol，single ring, sub ring and other ring QoS ● QoS Class, Remarking ● Support SP, WRR queue scheduling ● Ingress Port-based Rate-limit ● Egress Port-based Rate-limit ● Policy-based QoS ACL ● IP Standard ACL ● MAC extend ACL ● IP extend ACL Multicast ● IGMP V1,V2,V3 ● IGMP snooping ARP ● ARP table aging DHCP ● DHCP Client ● DHCP Snooping IPv4/IPv6 ● Static routing |
| Management. |
● NTP ● LLDP ● TFTP Client ● Telnet Server ● SSH Server ● IPv6 Management ● SNMP V1/V2C/V3 ● Ping、Tracert ● RMON(Remote Monitoring)alarm, event and history record ● Management Access (Console, SNMP, Web, Telnet ) ● Firmware upload/download (HTTP/HTTPS/TFTP/FTP) ● Configuration upload/download (HTTP/HTTPS/TFTP/FTP) ● Support optical transceiver DDM function ● Support temperature monitoring ● Support Syslog and alarm grading |
| Security. |
● Support Dot1x，port authentication，mac authentication，RADIUS service ● Support port-security ● Support ip source guard，IP/Port/MAC binding ● Support arp-check and ARP packet filtering for illegal users |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | No |
| Manageable. | Yes |
| Fanless. | No |
| Concurrent ports. | Total 28.00 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 440 x 245 x 44 mm |
| System Specifications. | |
| Power supply. | 100-240 VAC, 50-60 Hz |
| Data Rate. | 1Gbps, 2.5Gbps |
| Power supply included. | Yes |
| Power consumption. | 36 W |
| MTBF. | 534,057 hrs |
| Heat dissipation. | 136.48 BTU/hr |
| Packet forwarding rate. | 101 Mpps |
| Port Configuration. | 24x 10/100/1000 Ethernet ports, 4x 1/2.5GbE SFP Ports |
| Standard. |
● IEEE 10BASE-T (IEEE 802.3) ● IEEE 100BASE-TX (IEEE 802.3u) ● IEEE 1000BASE-T (IEEE 802.3ab) ● IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) Transceivers ● IEEE 802.3ad Dynamic Link Aggregation (2.5GE) ● IEEE802.3x flow control ● IEEE 802.1Q VLANs (Supports 4K) ● IEEE 802.1D Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP, 64 instances) |
| Acoustic noise (dB). | less than 45 dB |
| Mount. | 19" rack mount, Desk mount |
| Flash memory size. | 512 MB |
| RAM size. | 256 MB |
| MAC address table. | 16 K |
| Jumbo frame (KB). | 10 |
| Indicators. |
● Power ● Link/Active |
| Packet buffer. | 12 Mbits |
| Backplane (Gbps). | 68 |
| Others. | |
| Approval and Compliance. |
● FCC Part 15 Subpart B ● CE Mark ● EN IEC 62368-1 ● EN 55032 ● EN 55035 ● EN 61000-3-2/3 ● RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 50°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 70°C |
| Package Contents. |
● GEL-2871 ● Power Cord ● Console Cable ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
