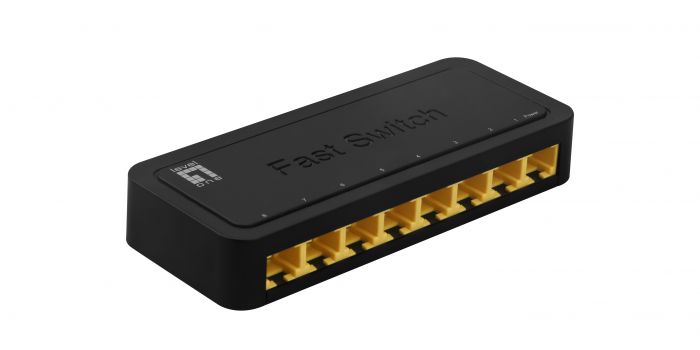

FEU-0812 8-Port Fast Ethernet Switch
Model Number.
FEU-0812
SKU
53016203201
The LevelOne FEU-0812 is a wire-speed, non-blocking networking device that provides 8 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | No |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | Total 8.00 |
| Physical Specifications. | |
| Product weight (kg). | 0.11 |
| Dimensions (W x D x H). | 130.7 x 52 x 21 mm |
| System Specifications. | |
| Power supply. | Input : 5VDC, 0.55A (External Power Adapter) |
| Data Rate. | 100Mbps |
| Power supply included. | Yes |
| Power consumption. | 1.7 W |
| Standard. |
● IEEE802.3 (10BASE-T) ● IEEE802.3u (100BASE-T) ● IEEE802.3az (Energy Efficient Ethernet) ● IEEE802.3x |
| Mount. | Desk mount |
| MAC address table. | 1 K |
| Indicators. |
● Power ● Link/Active |
| Packet buffer. | 1.19 Mpps |
| Backplane (Gbps). | 1.6 |
| Others. | |
| Approval and Compliance. |
● CE ● UKCA ● RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 45°C |
| Storage humidity. | 5% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Package Contents. |
● FEU-0812 ● Power Adapter ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color. | Black |
| EAN. | 4015867226667 |
| Model Number. | FEU-0812 |
