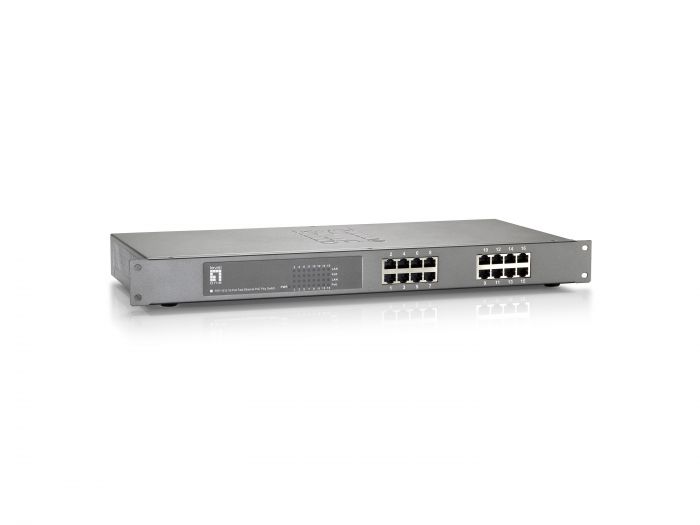

FEP-1612W380 16-Port Fast Ethernet PoE Switch, 802.3af/at PoE, 16 PoE Outputs, 380W Power Budget
LevelOne FEP-1612W380 is a 16-port Fast Ethernet PoE switch designed for high-density PoE deployments such as IP surveillance, wireless access and voice networks. All 16 10/100Mbps ports support IEEE 802.3af/at PoE, delivering both data and power over a single Ethernet cable to remote devices across offices, campuses and industrial sites.
With MDI/MDI-X auto-detection on every port, the switch offers true plug-and-play installation, regardless of whether straight-through or crossover cables are used. A generous total PoE power budget of 380W allows you to power a full set of PoE and PoE+ devices, while auto-detection and protection of non-standard PoE equipment help prevent damage during rollout or expansion. It provides a simple, cost-effective and highly reliable platform for bridging Ethernet and Fast Ethernet workgroups.
The FEP-1612W380 features a non-blocking 3.2Gbps backplane to handle growing bandwidth demands and keep traffic flowing smoothly between connected devices. IEEE 802.3x Flow Control and a 4K MAC address table ensure stable forwarding performance, and the robust 19-inch metal housing is ready for rack-mounted installation in network rooms, telecom closets or industrial cabinets.
| Port Configuration | |
|---|---|
| 802.3af/at PoE | 16 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | No |
| Concurrent ports. | Total 16.00 |
| PoE Power Budget. | Total 380.00 |
| Performance 2. | |
| Switching capacity. | 3.2Gbps |
| Others. | |
| Approval and Compliance. | FCC, CE, RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 45°C |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Package Contents. |
FEP-1612 Stromkabel Gummifüße Quick Installation Guide |
| General. | |
| Color. | Grey |
| EAN. | 4015867199893 |
| Model Number. | FEP-1612W380 |
| Physical Specifications. | |
| Product weight (kg). | 2,85 |
| Dimensions (W x D x H). | 480 x 200 x 44 mm |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Power supply included. | Yes |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) |
| Mount. | 19" rack mount |
| Flash memory size. | 160 |
| MAC address table. | 4K |
| Indicators. | Power, Active, 10/100M, PoE |
| Dip switch. | Power On / Off Switch |
| Backplane (Gbps). | 3.2 |
