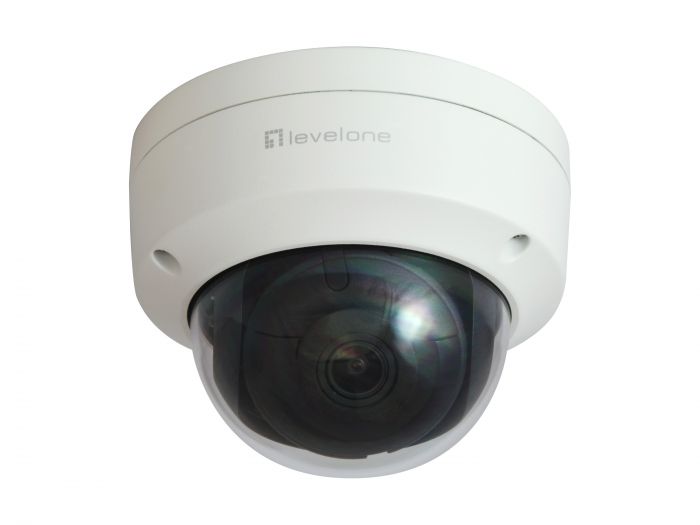

FCS-3402 GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, Vandalproof, 802.3af PoE, Indoor/Outdoor
Model Number.
FCS-3402
SKU
57304807201
The LevelOne FCS-3402 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852589 |
| Customs product code (TARIC). | 8525890000 |
| Features 1. | |
| Features. |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark Region of Interest:1 fixed region for main stream and sub-stream Saturation, brightness, contrast, sharpness, AGC, White balance adjustable by client software or web browser BLC, 3D DNR Motion detection, video tampering alarm, illegal login |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO. | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 2 Megapixels |
| Resistance. | Weatherproof |
| IP Camera series. | GEMINI |
| Camera Type. | Dome |
| Zoom type. | Fixed |
| PoE Supported. | Yes |
| System Specifications. | |
| Angle of view (°). | FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8° |
| Image sensor. | 1/2.8" Progressive Scan CMOS |
| Indicators. | Power |
| IR cut filter. | Yes |
| IR range. | Up to 30 meter |
| Lens. | Board LENS 4mm @F1.6 |
| Minimum illumination (lux). | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Mount. | Ceiling mount |
| Port Configuration. | RJ-45(PoE) ,DI/DO, Power |
| Power consumption. |
12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W |
| Power supply. | PoE/VDC 12V |
| Power supply included. | No |
| Resolution. |
Main Stream: 50Hz: 25fps (1920 * 1080, 1280 * 960, 1280 * 720) 60Hz: 30fps (1920 * 1080, 1280 * 960, 1280 * 720) Sub-Stream: 50Hz: 25fps (640 * 480, 640 * 360, 320 * 240) 60Hz: 30fps (640 * 480, 640 * 360, 320 * 240) |
| Shutter time. | 1/3 s to 1/100,000 s |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.1X Network Access Control TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
| Supported storage capacity. | 256 GB |
| Video format. | H.265/H.264/MJPEG |
| Weatherproof rating. | IP67 |
| Others. | |
| Approval and Compliance. | CE/FCC,IP67, IK10 |
| Compatibility. | CE/FCC |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -30°C ~ 60°C |
| Package Content. | Quick installation guide |
| Supported browsers. |
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -30°C ~ 70°C |
| Package Contents. |
FCS-3402 Screw Kit Quick Installation Guide |
| General. | |
| Color. | White |
| EAN. | 4015867231289 |
| Model Number. | FCS-3402 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3") |
| Product weight (kg). | 0.5 |
