FCS-3303 HUBBLE Zoom Dome IP Camera, H.265, 3-MP
Model Number.
FCS-3303
SKU
57302107

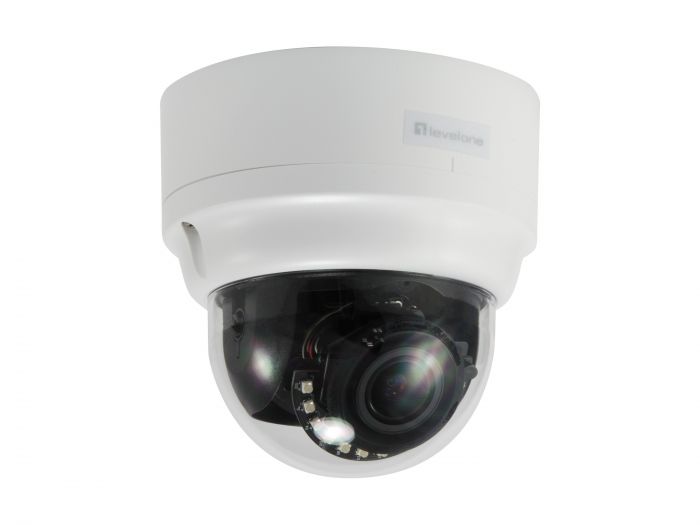

The LevelOne FCS-3303 Fixed Dome Camera offers a highly reliable, cost-effective IP surveillance solution in a low-profile dome casing which inhibits malicious tampering with the device. The IP camera offers 3-Megapixel resolution, and being PoE enabled, it can use a single Cat.5 cable to run both power and data, making deployments easy and flexible.
| Port Configuration | |
|---|---|
| Fast Ethernet RJ45 | 1x PoE 802.3af |
| Terminal block | DI/DO,Audio IN/Out, |
| Logistics Data. | |
| Harmonized System (HS) code. | 852589 |
| Customs product code (TARIC). | 8525890000 |
| Features 1. | |
| Features. | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer, Defogging |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO. | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 3 Megapixels |
| IP Camera series. | HUBBLE |
| Camera Type. | Dome |
| Zoom type. | Optical |
| PoE Supported. | Yes |
| System Specifications. | |
| Angle of view (°). | 90.6 - 32.7 |
| Audio format. | G.711 |
| Image sensor. | 1/2.8" Progressive Scan CMOS |
| Indicators. | Power |
| IR cut filter. | Yes |
| IR range. | Up to 30 meter |
| Lens. | Optical Zoom, f2.8-12mm ,P-Iris |
| Minimum illumination (lux). | Color mode: 0.05 lux at F1.4 (AGC on), B/W Mode: 0.005 lux at F1.4 (AGC on) |
| Power consumption. | 12.95 W (PoE) |
| Power supply included. | No |
| Resolution. |
30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 30 fps at 320 x 240 |
| Shutter time. | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Standard. | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Supported storage capacity. | 64 GB |
| Video format. | H.265/H.264/MJPEG |
| Others. | |
| Approval and Compliance. | CE,FCC |
| Operating temperature. | -10°C ~ 40°C |
| Supported browsers. | Internet Explorer 9.0 or above |
| Package Contents. |
FCS-3303 Screw Kit Quick Installation Guide Resource CD (User Manual, Utility, QIG) |
| General. | |
| Color. | White |
| EAN. | 4015867202708 |
| Model Number. | FCS-3303 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 124 x 124 x 119.4 mm |
| Product weight (kg). | 0,44 |
