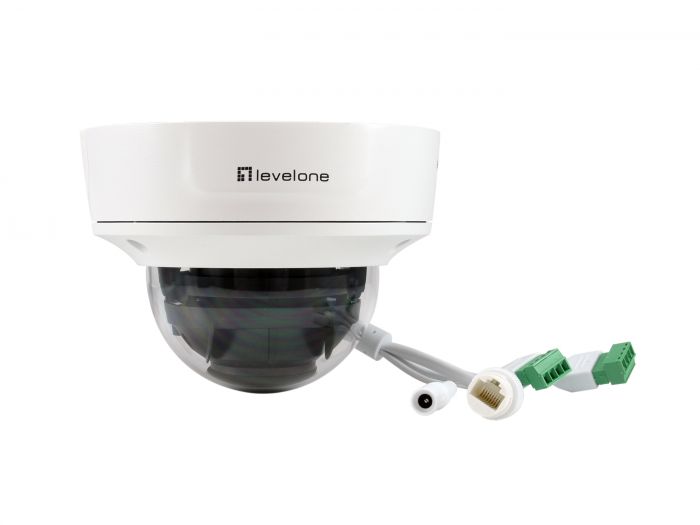

FCS-3098 GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, POE, IR LEDS, INDOOR/OUTDOOR, TWO-WAY AUDIO
Model Number.
FCS-3098
SKU
57303307201
The LevelOne FCS-3098 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3098 offers 8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852589 |
| Customs product code (TARIC). | 8525890000 |
| Features 1. | |
| Features. |
Video: Rotate, Mirror, Privacy mask, Saturation, Brightness, Contrast, Sharpness, Gain, White balance adjustable by client software or web browser Event: Supports human and vehicle targets classification. Line crossing detection, Intrusion detection. Face detection Securely: Password protection, Complicated password, Https encryption, IP address filter, Security audit log, Basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication. |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO. | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 8 Megapixels |
| Resistance. | Weatherproof, Vandalproof |
| IP Camera series. | GEMINI |
| Camera Type. | Dome |
| Zoom type. | Motorization |
| PoE Supported. | Yes |
| System Specifications. | |
| Angle of view (°). | FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° |
| Audio format. | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio system. | Mono |
| Image sensor. | 1/2.8" Progressive Scan CMOS |
| Indicators. | Power/Link Act |
| IR cut filter. | Yes |
| IR range. | 40 Meter |
| Lens. | Varifocal lens, Motorized Lens, 2.8 to 12 mm |
| Minimum illumination (lux). | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Mount. | Ceiling mount |
| Port Configuration. | 10 /100Mbps PoE ,DI/DO(Terminal black), Audio in/Out (Terminal black), VDC connector |
| Power consumption. |
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Power supply included. | No |
| Protocols. | Http, Https, NTP, IPv4, IPv6, TCP, UDP, RSTP, FTP, DHCP, PPPoE, TLS, SSL, SMTP, UPNP |
| Resolution. |
Main Stream: 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Shutter time. | 1/3 s to 1/100,000 s |
| Standard. | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Standards. | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3x Full-duplex Flow Control, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.1X authentication |
| Supported storage capacity. | 512 GB |
| Video format. | H.265/H.264/MJPEG |
| Weatherproof rating. | IP67 |
| Others. | |
| Approval and Compliance. | CE/FCC/RoHs |
| Compatibility. |
Ooption accessory Mounting Kit : CAS-7359 Junction Box |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -30°C ~ 60°C |
| Supported browsers. |
Plug-in required live view: IE 11, Edge Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Compatible operating systems. |
Web Client Language: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -10°C ~ 70°C |
| Package Contents. |
Screw Kit QIG |
| General. | |
| Color. | White |
| EAN. | 4015867228647 |
| Model Number. | FCS-3098 |
| Physical Specifications. | |
| Dimensions (W x D x H). | Ø 153.3 mm × 111.6 mm (Ø 6.1" × 4.4") |
| Product weight (kg). | 0.8 |
