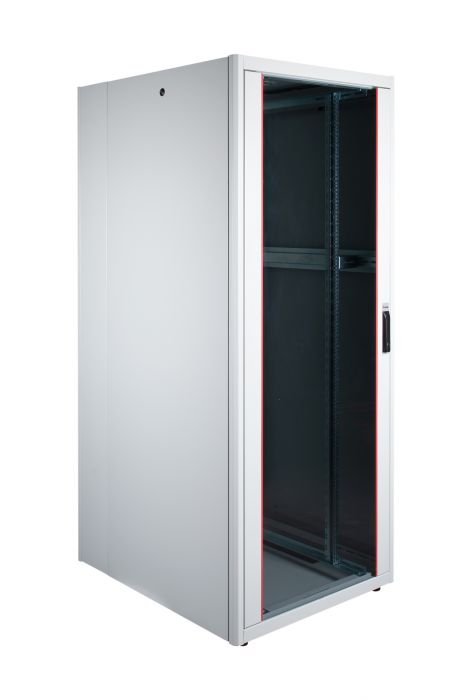

Equip Basic Flex 19" Free Standing Server Cabinet, 42U, 800x1000mm, with Glass Door, Removable and Lockable Panels, Assembled, RAL7035 Grey

Model Number.
EBF-42-8010-G-BAAA
SKU
280024
  • 42U cabinet, designed for optimal performance in every space
  • 800X1000MM Server Cabinet
  • Ships preassembled for easy setup at your location
  • The cabinet comes with a tempered glass frontdoor to provide unmatched strength while maintaining clear visibility
  • Sidepanels are removable and lockable
  • Backpanel is removable
  • These cabinets, of the Basic Flex Line, are engineered for the efficient and user-friendly installation of both active and passive network components, prioritizing streamlined cable management. Crafted from steel sheets up to 1.5 mm thick, every cabinet guarantees excellent stability, attributed to a unique plate curving technique, forming a sturdy steel framework. They are finished with a powder coating in shades of grey (RAL 7035) and black (RAL 9005). For challenging set-up locations that are less accessible, the cabinet is designed to be disassembled. The doors are easily detachable, and their stops can be switched between right and left orientations. Additionally, the roof is prepped for the integration of an air ventilation unit. Inside, each cabinet houses two sets (4 pieces) of 483 mm (19") profile rails. These rails, galvanized and marked with height units readable from both directions, are adjustable in depth. To facilitate extensive equipment installations, they're paired with supplementary depth support bars. Cable management is central to the design. The cabinet base features a punched-out cable entry shielded with a metal plate. For the broader 800 mm width cabinets, there are added punched-out cable entries covered with plastic on both sides. These entries are replicated on the roof, with a single one for 600 mm width cabinets and three for the 800 mm width ones. To cater to diverse operational needs, a wide assortment of accessories, including cable management tools and shelves, is readily available.
    More Information
    Design
    Wall mountable. No
    Technical Details.
    Number of cartons per pallet. 1 piece
    Pallet Net Weight. 14200 gram
    Pallet Gross Volume. 142560 cubic_centimeter
    Package Volume. 102168000 cubic_centimeter
    Maximum number of stacking cartons. 1 piece
    Pallet Net Depth. 1080 millimeter
    Pallet Net Width. 880 millimeter
    Pallet Net Height. 150 millimeter
    Packaging Content.
    Manual. Yes
    Mounting kit. No
    Mounting.
    Max. Weight Capacity. 600 kilogram
    Performance 1.
    Key lock. Yes
    Housing Material. Steel
    Features 2.
    Built-in UPS. No
    Rack rails. Yes
    Frame type. Closed
    Feet adjustment. 30 millimeter
    Assembly Required. No
    Soundproof. No
    Castor wheels. No
    Rack Type. Freestanding rack
    Rack capacity. 42U
    Removable Back Door. No
    Removable Front Door. Yes
    Max. Weight Capacity On Wheels. 600 kilogram
    Back Door Construction. Steel
    Front Door Construction. Tempered glass
    Side Panel Construction. Steel
    Side Panel Key Lock. Yes
    Back Door Key Lock. Yes
    Front Door Key Lock. Yes
    Side panels included. Yes
    Rack rail thickness. 1.5 millimeter
    Stabilizing foot screw. Yes
    Number of stabilizing foot screws. 4 piece
    Adjustable stand. No
    Monitoring. No
    Main PDU. No
    Product design. 4-Post
    Cooling type. Passive
    Front Door Opening Angle. 200 degree
    Removable Side Panels. Yes
    Logistics Data.
    Number of Layers per Pallet. 1 piece
    Pallet Gross Weight. 132500 gram
    Harmonized System (HS) code. 853710
    Customs product code (TARIC). 8537109899
    Carbon Footprint. 19.4598 kilogram
    Quantity per Pallet. 1 piece
    Sustainability.
    Sustainability Compliance. Yes
    Packaging Data.
    Screws included. No
    Wall mounting kit. No
    Temperature sensor. No
    Quantity per Pack. 1 piece
    Plinth panel. No
    Nuts included. No
    Package Depth. 1080 millimeter
    Package Height. 2150 millimeter
    Package Width. 880 millimeter
    Grounding kit. Yes
    Quick installation guide. No
    Product Gross Weight. 4500 gram
    Ergonomics.
    Adjustable feet. Yes
    Adjustable depth. No
    Cable management. No
    General.
    Color. Light Grey
    RAL Code. RAL7035
    EAN. 4015867232057
    Model Number. EBF-42-8010-G-BAAA
    Features 1.
    Preassembled. Yes
    Physical Specifications.
    Rail to Rail Length. 19 inch
    Product Height. 2010 millimeter
    Product Width. 800 millimeter
    Product Depth. 1000 millimeter
    Material Thickness. 74.5 millimeter
    Internal Height. 1867 millimeter
    Internal Width. 795 millimeter
    Min. Rack Depth. 630 millimeter
    Max. Rack Depth. 950 millimeter
    Internal Depth. 995 millimeter
    Product Net Weight. 113800 gram
    Others.
    Package Content. Grounding set
