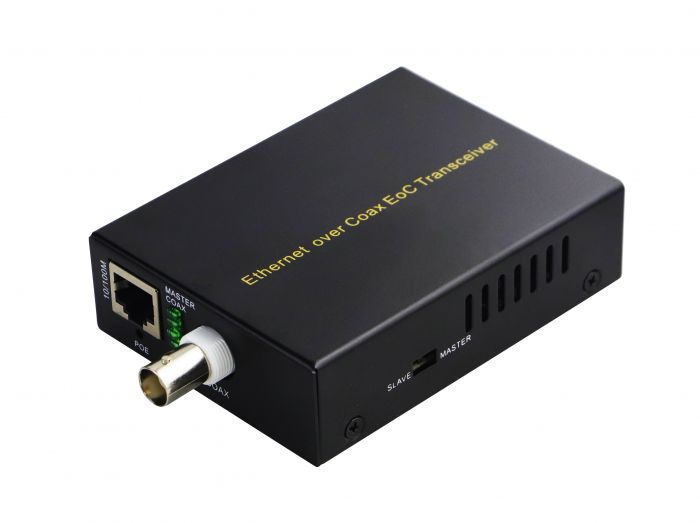

EOC-1101, PoE Ethernet transmission over Coax
Model Number.
EOC-1101
SKU
55553807101
EOC-1101 ((single package without power adapter)
LevelOne EOC-1101 is a conversion device for Ethernet over Coax. he equipment can transmit by BNC RG-58 Ethernet coax cable . Also have the excellent isolation and thunder prevention or anti-jamming function. In the practical project, this device is proved to be of highperformance in surge prevention. It transmits IP video or Ethernet up to 1.5km at a max rate 70Mbps over existing coax, thus cut the cost by avoid re-cabling when swapping analogue cameras for IP/Megapixel models.
| System Specifications. | |
|---|---|
| Indicators. | Power/Act |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Port Configuration. | RJ-45/BNC/Power |
| Power consumption. | <3 Watt |
| Standards. | IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+) |
| Others. | |
| Approval and Compliance. | CE/FCC |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | -20°C ~ 55°C |
| Storage humidity. | 5% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 80°C |
| Package Contents. |
Power adapter Power cord QIG |
| General. | |
| Color. | Black |
| EAN. | 4015867239520 |
| Model Number. | EOC-1101 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 25x94x77mm |
| Product weight (kg). | 0.45 |
