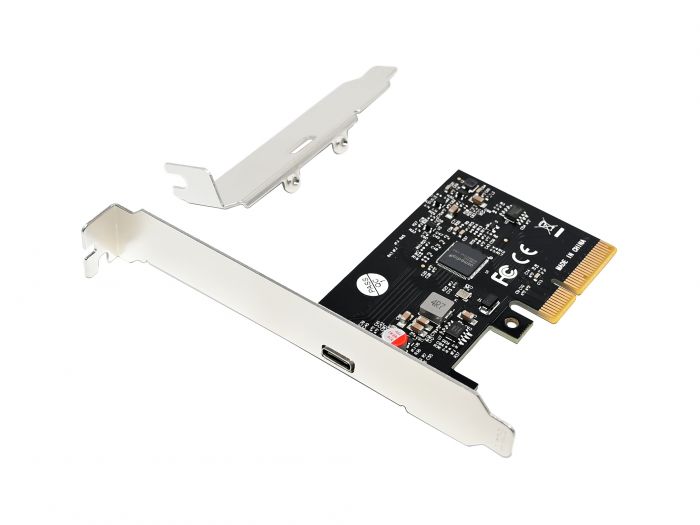

EMRICK14B 1-Port USB 3.2 Gen 2x2 Type-C PCIe Card
Model Number.
EMRICK14B
SKU
110014707101
This PCIe card lets you easily add an ultra-fast USB 3.2 Gen 2x2 Type-C port to your desktop computer. With a maximum data transfer rate of 20Gb/s, it enables quick and efficient transfers of large files and documents. Transform your desktop with cutting-edge USB 3.2 Gen 2x2 technology for faster and more efficient data management.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 8471800000 |
| Customs product code (TARIC). | 8471800000 |
| System Specifications. | |
| Connector. | PCIe x4 |
| Data Rate. | 20Gbps |
| PCI version. | PCIe 3.0 |
| Chipset. | ASM3242 |
| Standards. | USB 3.2 Gen 2x2 |
| Others. | |
| Approval and Compliance. | CE, RoHS |
| Operating humidity. | 15% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 85°C |
| Compatible operating systems. |
Windows 8/8.1/10/11 macOS 10.8 to 10.10, and 10.12 or later Linux kernel 2.6.31 or later |
| Storage temperature. | -25°C ~ 85°C |
| Package Contents. |
EMRICK14B Low profile bracket Multilingual quick installation guide |
| General. | |
| Color. | Black |
| EAN. | 4015867239339 |
| Model Number. | EMRICK14B |
| Physical Specifications. | |
| Dimensions (W x D x H). | 79 x 51 x 30 mm |
| Product weight (kg). | 0.032 |
