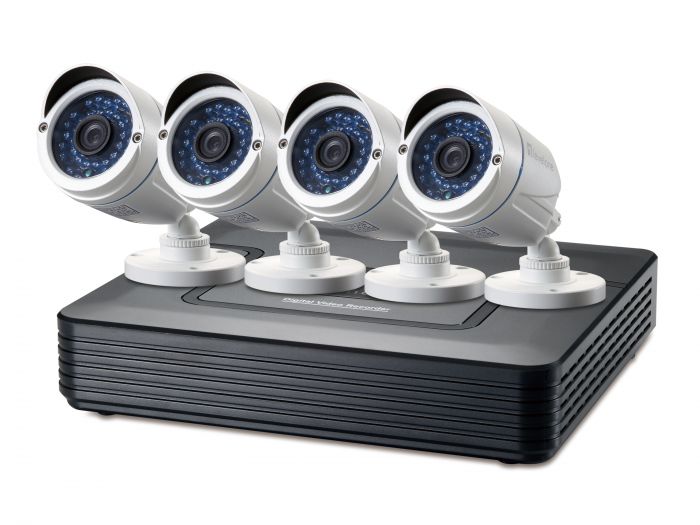

DSK-4001, 4-Channel CCTV Surveillance Kit
The LevelOne 4-Channel CCTV Surveillance Kit offers an ideal way to monitor a large house or building premises, for situations requiring professional-level surveillance. With superior quality, high-definition cameras stationed on all sides of the building, all access points can be securely watched at all times of the day and night. Sophisticated software allows easy monitoring of all eight cameras from any PC, laptop, tablet or smartphone. Cameras all conform to Weatherproof standard IP66, and operate in temperatures from -10°C to 55°C. Built-in infrared LEDs support night monitoring for distances up to 30 metres, providing crystal-clear images at any time, under any conditions. The quality cameras also offer full-screen, high resolution recording and playback. Everything you need for safe, secure surveillance of your home or business, providing the utmost in peace-of-mind.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852190 |
| Customs product code (TARIC). | 8521900000 |
| Features 1. | |
| Features. | Support 4-in-1 AHD/TVI/CVI/CVBS signals |
| Non-disclosure. | |
| Embedded system | Linux |
| Physical Specifications. | |
| Dimensions (W x D x H). | 235 x 225 x 45 mm |
| Product weight (kg). | 1.5 |
| System Specifications. | |
| Angle of view (°). | 96 |
| Audio format. | G.711A |
| Battery capacity (mAh). | 0.006 |
| Battery capacity (Wh). | 0.66 |
| Battery voltage. | 3V |
| Drive bays. | 1 |
| Image sensor. | 1/3" 2-MP Progressive Scan CMOS |
| Indicators. |
Power H.D.D. LAN |
| IR range. | 30 Meter |
| Lens. | 3.6 mm,M12 |
| Minimum illumination (lux). | 0.5 |
| Port Configuration. | 4* BNC, 1*Power, 1* RJ-45, 1*HDMI |
| Power supply included. | Yes |
| Chipset. | Hi3520D V200 |
| Resolution. |
DVR: 4*1080N;4*720P;4*960H Camera:2-MP |
| Shutter time. | 1/50~1/100,000s |
| Standard. | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS |
| Supported storage capacity. | 6 TB |
| Video Bandwidth. | 32 Kbps to 4 Mbps |
| Number of video channel. | 4-ch |
| Others. | |
| Approval and Compliance. |
CE/FCC, Camera Waterproof IP66 |
| Supported browsers. | IE 9 above |
| Package Contents. |
DSK-4001 4-Channel DVR Camera (x4) 18m BNC Cables (x4) Power adapter Power Splitter Cable Ressource CD Quick Installation Guide |
| General. | |
| Color. | Black |
| EAN. | 4015867227862 |
| Model Number. | DSK-4001 |
