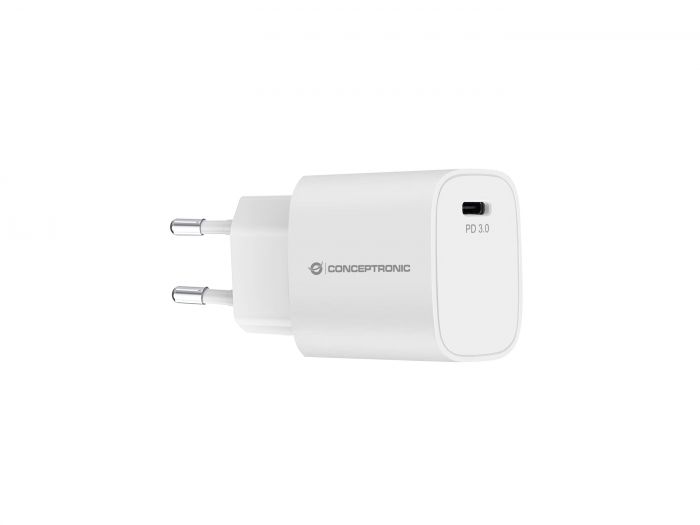

ALTHEA14W 20W 1-Port USB-C PD Charger, PD 3.0
Model Number.
ALTHEA14W
SKU
120550103101
This charger features a dedicated USB-C port with USB Power Delivery (PD) 3.0, delivering up to 20W of total power for high-speed charging across a variety of devices. It supports a wide range of output options from 5.0V to 12.0V, ensuring compatibility with both smartphones and laptops. The charger is designed with enhanced safety features, including protections against overload, short circuiting, and overheating, to keep both the charger and connected devices safe. With USB Power Delivery (PD) 3.0 technology, it provides efficient and rapid charging, making it a versatile solution for diverse charging needs.
| Technical Details. | |
|---|---|
| Number of cartons per pallet. | 16 piece |
| Package Volume. | 329.0496 cubic_centimeter |
| Pallet Net Depth. | 800 millimeter |
| Pallet Net Width. | 1200 millimeter |
| Pallet Net Height. | 1800 millimeter |
| Packaging Content. | |
| Power Plug Type. | EU |
| Ports & Interfaces. | |
| USB Power Delivery revision | 3.0 |
| Performance 1. | |
| Number of simultaneously connected devices (max). | 1 |
| Port 1 Power Output. | USB-C output: DC 5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A |
| Programmable power supply (PPS) (YES/NO). | No |
| USB Type-C ports quantity. | 1 |
| Fast charging technology. | Power Delivery 3.0 |
| USB Type-A ports quantity. | 0 |
| Number of outputs. | 1 |
| Housing Material. | Polycarbonate (PC) |
| Logistics Data. | |
| Harmonized System (HS) code. | 850440 |
| Customs product code (TARIC). | 8504408390 |
| Quantity per Pallet. | 1600 piece |
| Power. | |
| Input current. | 0.6 ampere |
| Maximum AC Input. | 240 volt |
| Minimum AC Input. | 100 volt |
| Maximum power. | 20 watt |
| Power Protection Features. | Over current, Over power, Short circuit |
| Sustainability. | |
| Sustainability Compliance. | No |
| Operational Conditions. | |
| Operating temperature (T-T) Max. | 40 celsius |
| Operating temperature (T-T) Min. | 0 celsius |
| Storage relative humidity (H-H) Max. | 90% |
| Storage relative humidity (H-H) Min. | 5% |
| Operating relative humidity (H-H) Max. | 95% |
| Operating relative humidity (H-H) Min. | 5% |
| Storage temperature (T-T) Max. | 80 celsius |
| Storage temperature (T-T) Min. | -20 celsius |
| Packaging Data. | |
| Quantity per Pack. | 1 piece |
| Package Depth. | 164 millimeter |
| Package Height. | 33 millimeter |
| Package Width. | 60.8 millimeter |
| Product Gross Weight. | 10 gram |
| System Specifications. | |
| Power input. | AC 100.0-240.0V, 0.6A max, 50-60Hz |
| Others. | |
| Approval and Compliance. | CE, ERP, ROHS, REACH |
| Package Content. | Quick installation guide |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | 0°C ~ 40°C |
| Storage temperature. | -20°C ~ 80°C |
| Package Contents. |
ALTHEA14W Multilingual quick installation guide |
| General. | |
| Color. | White |
| EAN. | 4015867236451 |
| Model Number. | ALTHEA14W |
| Physical Specifications. | |
| Product weight (kg). | 0.052 |
| Dimensions (W x D x H). | 42.3 x 28 x 40.8 mm |
| Product Height. | 40.8 millimeter |
| Product Width. | 42.3 millimeter |
| Product Depth. | 28 millimeter |
| Product Net Weight. | 52 gram |
