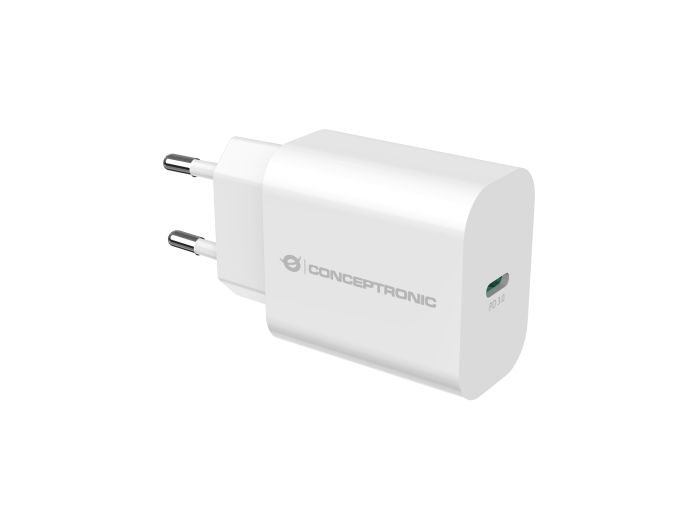

ALTHEA07W 20W 1-Port USB-C PD Charger, PD 3.0
Model Number.
ALTHEA07W
SKU
120548403201
This charger is equipped with a dedicated USB-C port featuring Power Delivery (PD) 3.0, providing up to 20W of total power for high-speed charging across a wide range of devices. It supports a range of output options from 5.0V to 12.0V, ensuring compatibility with devices from smartphones to laptops. Enhanced safety features include built-in protections against overload, short-circuiting, and overheating, ensuring the safety of both the charger and connected devices. Incorporating USB Power Delivery (PD) 3.0 technology, this charger ensures efficient and rapid charging, offering broad device compatibility.
| Akeneo | |
|---|---|
| Port Configuration. | USB-C x 1 |
| Technical Details. | |
| Number of cartons per pallet. | 32 piece |
| Package Volume. | 210 cubic_centimeter |
| Pallet Net Depth. | 800 millimeter |
| Pallet Net Width. | 1200 millimeter |
| Pallet Net Height. | 1700 millimeter |
| Packaging Content. | |
| Power Plug Type. | EU |
| Ports & Interfaces. | |
| USB Power Delivery revision | 3.0 |
| Performance 1. | |
| Number of outputs. | 1 |
| USB Type-A ports quantity. | 0 |
| Fast charging technology. | Power Delivery 3.0 |
| USB Type-C ports quantity. | 1 |
| Programmable power supply (PPS) (YES/NO). | No |
| Housing Material. | Polycarbonate (PC) |
| Number of simultaneously connected devices (max). | 1 |
| Port 1 Power Output. | USB-C output: DC 5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A |
| Logistics Data. | |
| Harmonized System (HS) code. | 850440 |
| Customs product code (TARIC). | 8504408390 |
| Quantity per Pallet. | 3200 piece |
| Power. | |
| Maximum AC Input. | 240 volt |
| Minimum AC Input. | 100 volt |
| Input current. | 0.5 ampere |
| Maximum power. | 20 watt |
| Power Protection Features. | Over current, Over power, Short circuit |
| Sustainability. | |
| Sustainability Compliance. | No |
| Operational Conditions. | |
| Operating temperature (T-T) Max. | 40 celsius |
| Operating temperature (T-T) Min. | 0 celsius |
| Storage relative humidity (H-H) Max. | 95% |
| Storage relative humidity (H-H) Min. | 5% |
| Operating relative humidity (H-H) Max. | 80% |
| Operating relative humidity (H-H) Min. | 10% |
| Storage temperature (T-T) Max. | 80 celsius |
| Storage temperature (T-T) Min. | -20 celsius |
| Packaging Data. | |
| Quantity per Pack. | 1 piece |
| Package Depth. | 100 millimeter |
| Package Height. | 70 millimeter |
| Package Width. | 30 millimeter |
| Product Gross Weight. | 10 gram |
| General. | |
| Color. | White |
| EAN. | 4015867230046 |
| Model Number. | ALTHEA07W |
| Physical Specifications. | |
| Dimensions (W x D x H). | 40.2 x 43.5 x 26 mm |
| Product Height. | 26 millimeter |
| Product Width. | 40.2 millimeter |
| Product Depth. | 43.5 millimeter |
| Product Net Weight. | 55 gram |
| Product weight (kg). | 0.055 |
| System Specifications. | |
| Power input. | AC 100.0-240.0V, 0.5A max, 50/60Hz |
| Others. | |
| Operating humidity. | 10% RH ~ 80% RH |
| Operating temperature. | 0°C ~ 40°C |
| Package Content. | Quick installation guide |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -20°C ~ 80°C |
| Package Contents. |
ALTHEA07W Multilingual quick installation guide |
