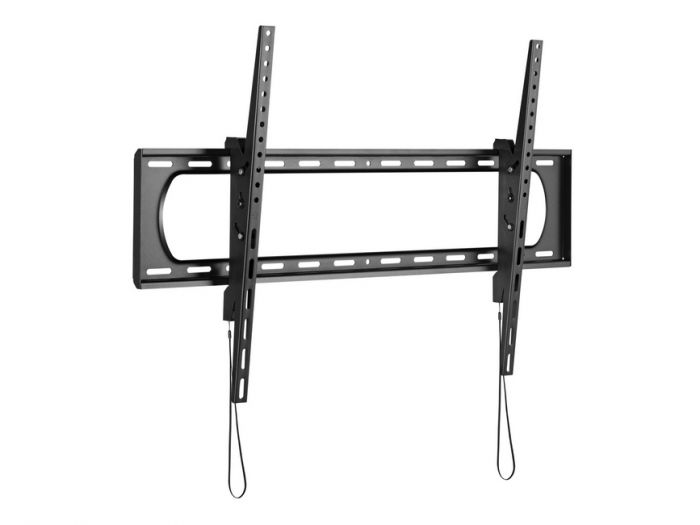

650339 60"-120" Heavy-duty Tilt TV Mount Bracket
The 60"-120" Heavy-duty Tilt TV Mount Bracket is this Heavy-duty Tilt TV Mount Bracket ensures a reliable installation for your LCD TV. Designed as an affordable heavy-duty solution, its reinforced stiffener structure supports up to 120kg to firmly hold 60"–120" TVs in place. The ample open space in the center is ideal for installing a socket outlet and concealing messy cables, creating a clean, professional look. The +10° to -10° toolless tilting mechanism provides flexible angle adjustment so you can achieve the perfect viewing position. Automatic spring locks with quick-release cords make TV removal quick and easy, helping to simplify both installation and maintenance. Supporting VESA patterns up to 900 x 600, this bracket combines strength, practicality and ease of use for large-screen mounting.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852990 |
| Customs product code (TARIC). | 8529909700 |
| System Specifications. | |
| Anti-theft. | No |
| Cable management. | No |
| Bracket type. | Fixed |
| Installation. | Solid Wall |
| Distance to wall (Profile). | 80mm |
| Load Capacity (kg). | 120kg |
| Material. | Stainless Steel |
| Screens support quantity. | 1 |
| Support Curved TV (Monitors). | Yes |
| Tilt range. | +10°~-10° |
| VESA compatibility. |
100x200,200x200,200x300,300x200, 200x400,400x200,300x300,300x400, 400x300,600x200,400x400,600x300, 400x600,600x400,700x400,800x400, 600x600,800x500,800x600,900x600 |
| Mount. | Wall mount |
| Others. | |
| Approval and Compliance. |
REACH, RoHS |
| Package Contents. |
650339 Manual screws kits |
| General. | |
| Color. | Black |
| EAN. | 4015867230930 |
| Model Number. | 650339 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 80 x 1005 x 602 mm |
| Product weight (kg). | 4.29 |
