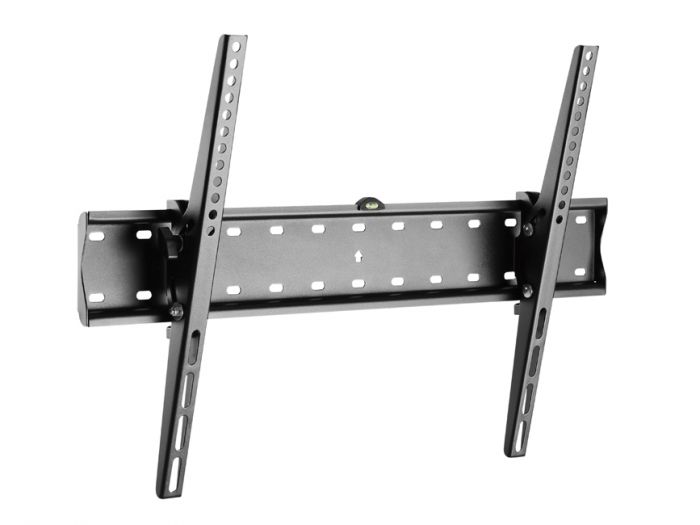

650332 37"-75" Tilt TV Wall Bracket
Model Number.
650332
SKU
65033207101
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852990 |
| Customs product code (TARIC). | 8529909700 |
| System Specifications. | |
| Mounting hole pattern | Standard VESA |
| Anti-theft. | No |
| Cable management. | No |
| Bracket type. | Tiltable |
| Installation. | Double Stud(406mm/450mm/600mm),Solid Wall |
| Distance to wall (Profile). | 53mm |
| Load Capacity (kg). | 40kg |
| Material. | Stainless Steel |
| Screens support quantity. | 1 |
| Support Curved TV (Monitors). | Yes |
| Tilt range. | +12°～-12° |
| VESA compatibility. |
100x200,200x200,300x200, 300x300,400x200,400x300, 400x400,600x400 |
| Mount. | Wall mount |
| Others. | |
| Approval and Compliance. | ROHS |
| Package Contents. |
650332 Manual screws kits |
| General. | |
| Color. | Black |
| EAN. | 4015867225417 |
| Model Number. | 650332 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 425 x 53 x 643 mm |
| Product weight (kg). | 1.82 |
