650321 32"-70" Ceiling Mount TV Bracket
Model Number.
650321
SKU
650321
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852990 |
| Customs product code (TARIC). | 8529909700 |
| System Specifications. | |
| Mounting hole pattern | Standard VESA, Universal |
| Anti-theft. | No |

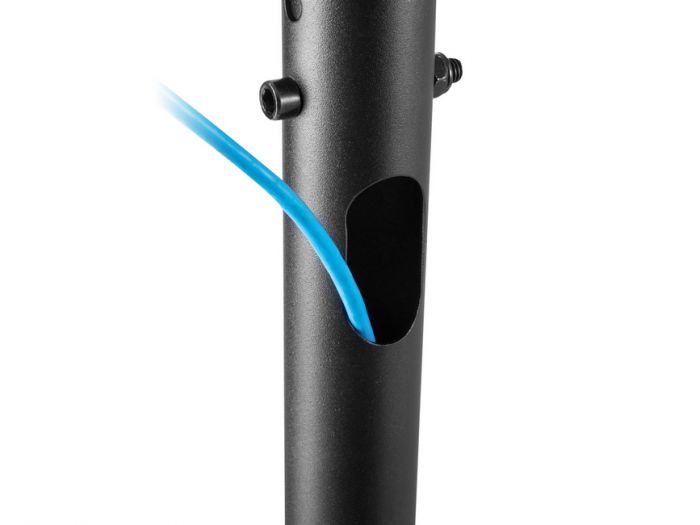

| Cable management. | Yes |

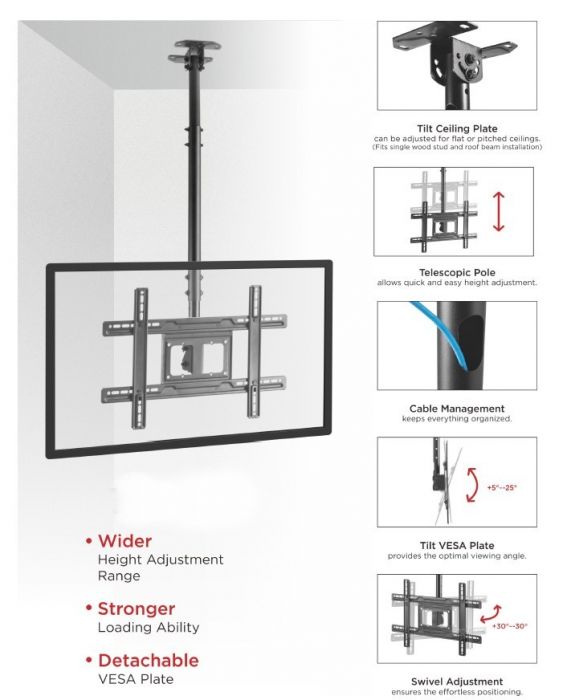

| Bracket type. | Tiltable and Swivel |
| Installation. | Single Stud, Ceiling |
| Distance to wall (Profile). | 707 ~ 1577mm |
| Load Capacity (kg). | 50Kg |
| Material. | Plastic, Stainless Steel |
| Pan (Swivel) range. | +30° ~ -30° |
| Screens support quantity. | 1 |
| Support Curved TV (Monitors). | No |
| Tilt range. | +5° ~ -25° |
| VESA compatibility. |
100x100,100x200,200x100, 200x200,300x200,300x300, 400x200,400x300,400x400 |
| Mount. | Ceiling mount |
| Others. | |
| Approval and Compliance. | RoHS |
| Package Contents. |
650321 Manual screws kits |
| General. | |
| Color. | Black |
| EAN. | 4015867204979 |
| Model Number. | 650321 |
| Physical Specifications. | |

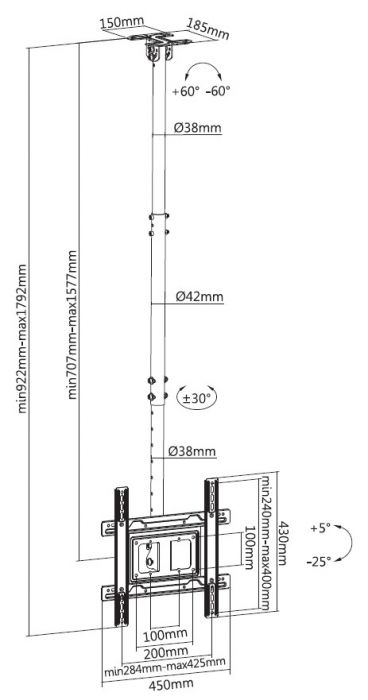

| Dimensions (W x D x H). | 185 x 450 x 1792 mm |
| Product weight (kg). | 5,06 |
