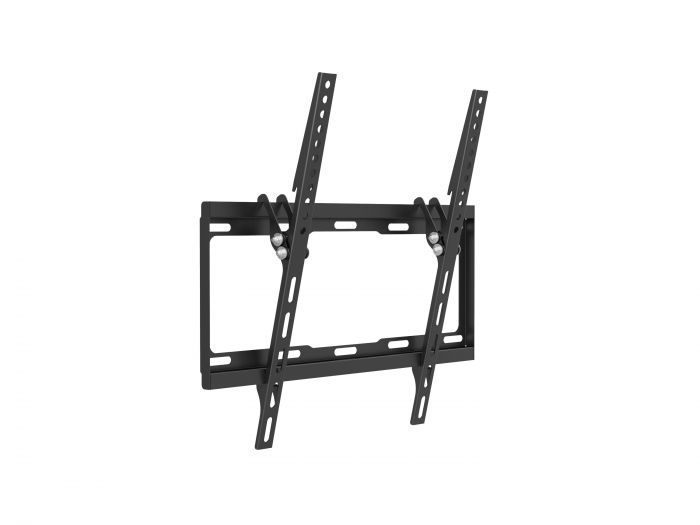

650311 32"-55" Tilt TV Wall Mount Bracket
Model Number.
650311
SKU
650311
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852990 |
| Customs product code (TARIC). | 8529909700 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 410 x 25 x 455 mm |
| Product weight (kg). | 0,95 |
| System Specifications. | |
| Mounting hole pattern | Universal |
| Anti-theft. | No |
| Cable management. | No |
| Bracket type. | Tiltable |
| Installation. | Single Stud |
| Distance to wall (Profile). | 25mm |
| Load Capacity (kg). | 35Kg |
| Material. | Stainless Steel |
| Pan (Swivel) range. | No |
| Screens support quantity. | 1 |
| Support Curved TV (Monitors). | Yes |
| Tilt range. | -14° ~ 0° |
| VESA compatibility. |
100x200, 200x200, 300x200, 200x300, 300x250, 300x300, 400x300, 300x400, 400x200, 400xX400 |
| Mount. | Wall mount |
| Others. | |
| Approval and Compliance. | RoHS |
| Package Contents. |
650311 Manual screws kits |
| General. | |
| Color. | Black |
| EAN. | 4015867186701 |
| Model Number. | 650311 |
