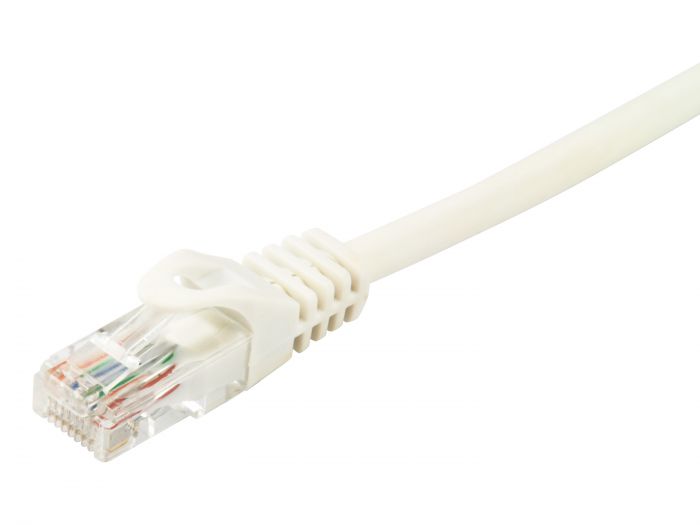

603008 Cat.6A U/UTP Patch Cable, 15m, White
Model Number.
603008
SKU
60300807201
The equip® Cat.6A U/UTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854442 |
| Customs product code (TARIC). | 8544421000 |
| Features 1. | |
| Angled Plug. | No |
| Flat cable. | No |
| Shielded. | No |
| Miscellaneous. | |
| Shielding. | U/UTP |
| Connector 1. | RJ45 male |
| Connector 2. | RJ45 male |
| System Specifications. | |
| Category. | Cat.6A |
| Conductor material. | Copper |
| Conductor size (AWG). | 4 x 2 AWG 26/7 Unshielded 500MHz performance Bandwidth Transmission: 10Gbit Suitable for PoE, PoE+ Stranded bare copper conductor Molded boot with Strain relief RoHS compliant Low Smoke Zero Halogen (LSZH/LSOH) Compliant with ISO/IEC 11801 and EN 50173 |
| Cable Jacket material. | LSZH |
| Others. | |
| Approval and Compliance. | RoHS |
| Operating temperature. | -20°C ~ 60°C |
| Package Contents. | Cat.6A U/UTP Patch Cable |
| General. | |
| Color. | White |
| EAN. | 4015867230657 |
| Model Number. | 603008 |
| Physical Specifications. | |
| Cable Length. | 15m |
| Dimensions (W x D x H). | 15000 x 15 x 11 mm |
| Product weight (kg). | 0.408 |
