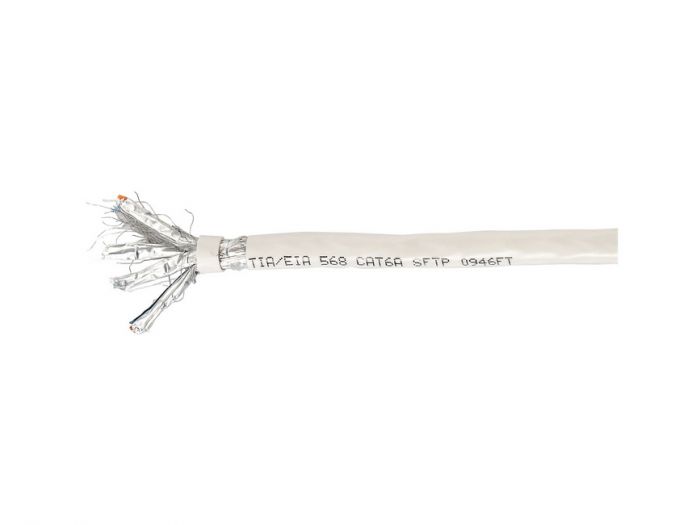

401493 Cat.6A S/FTP Installation Cable, Eca, LSZH, 305m
Model Number.
401493
SKU
401493
The equip® Installation Cable is made of preeminent materials and thoroughly examined to meet or surpass industrial standards defined by the EIA / TIA, ISO and EN standard bodies. The performance is guaranteed via a comprehensive test including attenuation, return loss, NEXT (Next End Crosstalk) and FEXT (Far End Crosstalk) up to 500 MHz and hence the equip® Installation Cable serves well in the most demanding networking environments.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854449 |
| Customs product code (TARIC). | 8544499100 |
| General. | |
| Color. | Grey |
| EAN. | 4015867165263 |
| Model Number. | 401493 |
| Features 1. | |
| Shielded. | Yes |
| Miscellaneous. | |
| Shielding. | S/FTP |
| Physical Specifications. | |
| Cable Length. | 305m |
| Dimensions (W x D x H). | 5 x 5 x 305000 mm |
| Product weight (kg). | 6 |
| Others. | |
| Approval and Compliance. | RoHS |
| Package Contents. | 401493 |
| System Specifications. | |
| Category. | Cat.6A |
| Conductor material. | Copper |
| Conductor size (AWG). | 23AWG |
| Conductor type. | Solid |
| Cable Jacket material. | LSZH |
