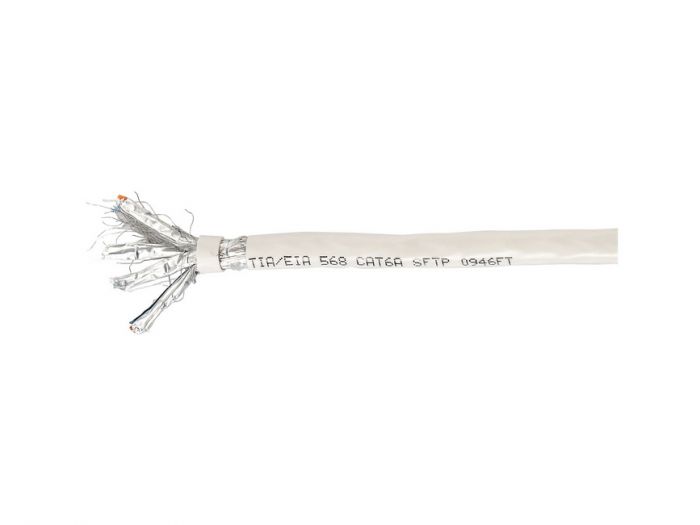

401491 Cat.6A S/FTP Installation Cable, 500MHz, 10GbE, PoE Support, LSZH, CPR Eca, 100m
401491 Cat.6A S/FTP Installation Cable is engineered for high-performance structured cabling, supporting data transmission up to 10 Gigabit Ethernet with a bandwidth of 500MHz.
The S/FTP construction combines individual foil shielding with overall braid shielding to reduce EMI and RFI interference, supporting stable signal quality in demanding networking environments. Performance is verified through testing for attenuation, return loss, NEXT, and FEXT in accordance with EIA/TIA, ISO, and EN standards.
Built with a solid bare copper conductor (AWG 23/1) and a Low Smoke Zero Halogen (LSZH/LSOH) jacket, this cable complies with CPR fire protection Class Eca (EN 50575) and RoHS requirements. Supplied as PE wrapped packaging, it is suitable for professional indoor installations.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854449 |
| Customs product code (TARIC). | 8544499100 |
| Features 1. | |
| Shielded. | Yes |
| Miscellaneous. | |
| Shielding. | S/FTP |
| Others. | |
| Approval and Compliance. | RoHS |
| Package Contents. | 401491 |
| General. | |
| Color. | Grey |
| EAN. | 4015867165256 |
| Model Number. | 401491 |
| Physical Specifications. | |
| Cable Length. | 100m |
| Dimensions (W x D x H). | 5 x 5 x 100000 mm |
| Product weight (kg). | 2 |
| System Specifications. | |
| CPR Certified | Eca |
| Category. | Cat.6A |
| Conductor material. | Copper |
| Conductor size (AWG). | 23AWG |
| Conductor type. | Solid |
| Cable Jacket material. | LSZH |
