40146807 Cat.6 U/UTP Installation Cable, 250MHz, 1GbE, LSZH, CPR Eca, CCA Conductor, 305m, Network Installation Cable
Model Number.
40146807
SKU
40146807

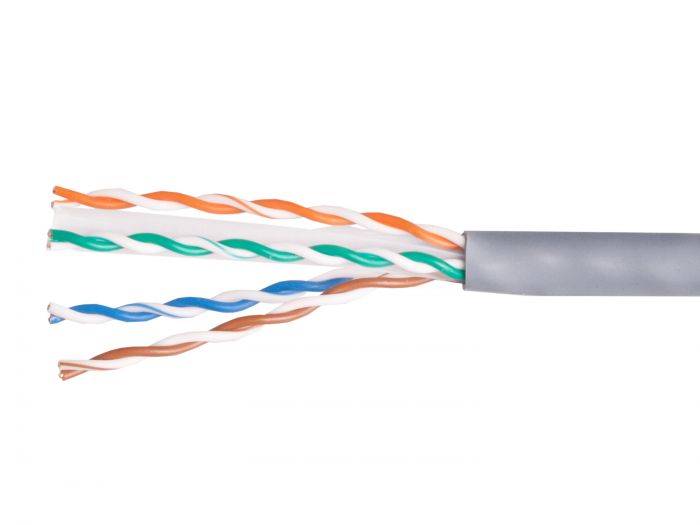

The equip® Cat.6 U/UTP Installation Cable is designed for structured cabling deployments supporting Gigabit Ethernet applications with a bandwidth of up to 250MHz.
This unshielded installation cable is suitable for standard network environments where electromagnetic interference is limited. It supports 1G Ethernet transmission and is commonly used in commercial buildings and general network infrastructure installations.
Constructed with a Copper Clad Aluminum (CCA) conductor and a Low Smoke Zero Halogen (LSZH) jacket, the cable complies with CPR fire protection Class Eca (EN 50575) and RoHS requirements. Supplied in an EZ box, it provides a practical solution for cost-effective network cabling projects.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854449 |
| Customs product code (TARIC). | 8544499100 |
| Features 1. | |
| Shielded. | No |
| Miscellaneous. | |
| Shielding. | U/UTP |
| System Specifications. | |
| Category. | Cat.6 |
| Conductor material. | CCA |
| Conductor size (AWG). | 23AWG |
| Conductor type. | Solid |
| Cable Jacket material. | LSZH |
| Others. | |
| Approval and Compliance. | RoHS |
| Package Contents. | 40146807 |
| General. | |
| Color. | Grey |
| EAN. | 4015867196830 |
| Model Number. | 40146807 |
| Physical Specifications. | |
| Cable Length. | 305m |
| Dimensions (W x D x H). | 6.4 x 6.4 x 305000 mm |
| Product weight (kg). | 8,1 |
