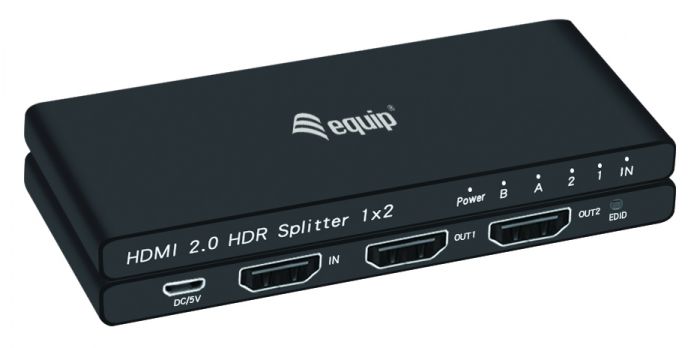

332716 Ultra Slim 2-Port HDMI 2.0 Splitter
Model Number.
332716
SKU
33271607101
The equip 2-Ports HDMI Splitter distributes one video stream to two displays, bringing synchronized high-definition video to conventions, home theaters, shopping areas, and campuses with ease.
HDMI Splitter splits your HDMI device's audio and video signals on two screens, TVs or projectors with a resolution of UHD 4K/60Hz.
No more tedious reconnecting your cables. Additionally, HDR, HDCP2.2 and 3D are supported - also a total width of 18Gbps for fluent playback in excellent quality.
Auto-EDID - Automatically reads the EDID data of the connected display.
| Port Configuration | |
|---|---|
| HDMI out | 2 |
| HDMI in | 1 |
| Logistics Data. | |
| Harmonized System (HS) code. | 854370 |
| Customs product code (TARIC). | 8543709099 |
| General. | |
| Color. | Black |
| EAN. | 4015867223222 |
| Model Number. | 332716 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 4.2 x 0.95 x 13 mm |
| Product weight (kg). | 0.072 |
| Others. | |
| Approval and Compliance. | CE & RoHS |
| Operating temperature. | 0°C ~ 40°C |
| Package Contents. |
Ultra Slim 2-Port HDMI 2.0 Splitter User manual Power adapter Quick Installation Guide |
| System Specifications. | |
| Material. | Aluminum |
| Power supply. | Power adapter 5V/1A |
| Standards. | HDMI 2.0 |
| Video format. | 4K/60Hz |
